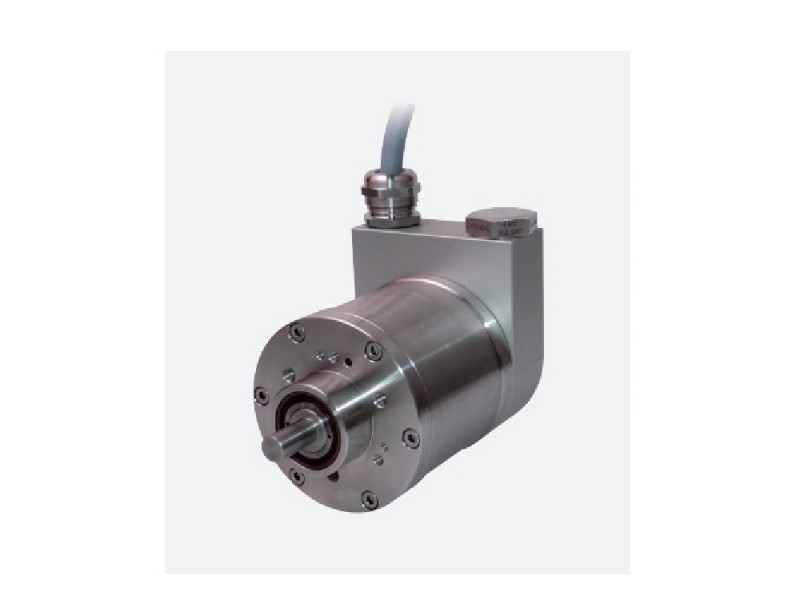

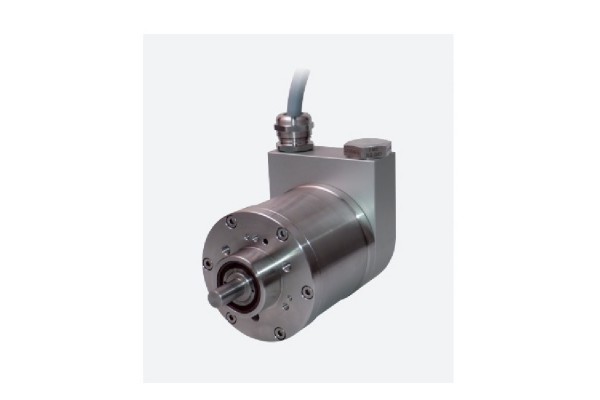

Encoder Rotativo Absoluto Pepperl Fuchs IVM78E-011KRR05I-0413

Marca: Pepperl Fuchs

Modelo: IVM78E-011KRR05I-0413

Referência: 325887

Function

This absolute rotary encoder with internal magnetic sampling provides an analog output. The output current value is corresponding to the shaft setting.

The encoder can be easily programmed by means of electrical inputs and pushbuttons.

Technical Data

Detection type magnetic sampling

Device type Multiturn absolute encoder

Measurement range min. 0 ... 22.5 °

max. 16 x 360 °

Resolution 16 Bit (12 bits/revolution)

Functional safety related parameters

MTTFd 470 a

L10 7.7 E+9 at 3000 rpm

Electrical specifications

Operating voltage UB 15 ... 30 V DC , PELV

Current consumption typ. 40 mA

Input 1

Input type lower limit of measurement range (Set 1)

Signal voltage

High 15 ... 30 V DC

Signal duration min. 1 s

Input 2

Input type upper limit of measurement range (Set 2)

Signal voltage

High 15 ... 30 V DC

Signal duration min. 1 s

Analog output

Output type 1 analog output, current

Default setting rising ramp at ccw rotation

Linearity error ≤ 0.15 %

Load resistor max. 500 Ω ; Max. value for operating voltage 15 V. For higher operating voltage

higher load resistance can be used.

Connection

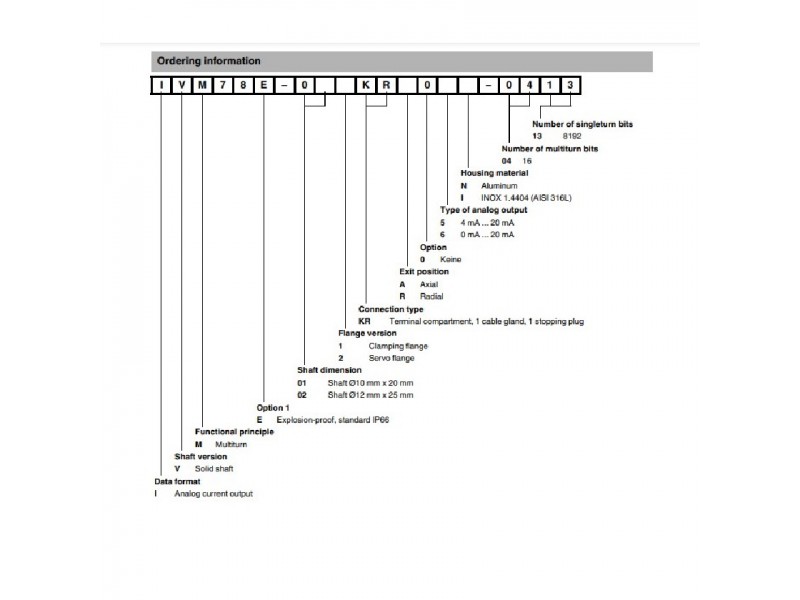

Terminal compartment see ordering information

Standard conformity

Degree of protection DIN EN 60529, IP66

Climatic testing DIN EN 60068-2-3, no moisture condensation

Emitted interference EN 61000-6-4:2007/A1:2011

Noise immunity EN 61000-6-2:2005

Shock resistance DIN EN 60068-2-27, 100 g, 6 ms

Vibration resistance DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz

Ambient conditions

Operating temperature -40 ... 70 °C (-40 ... 158 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

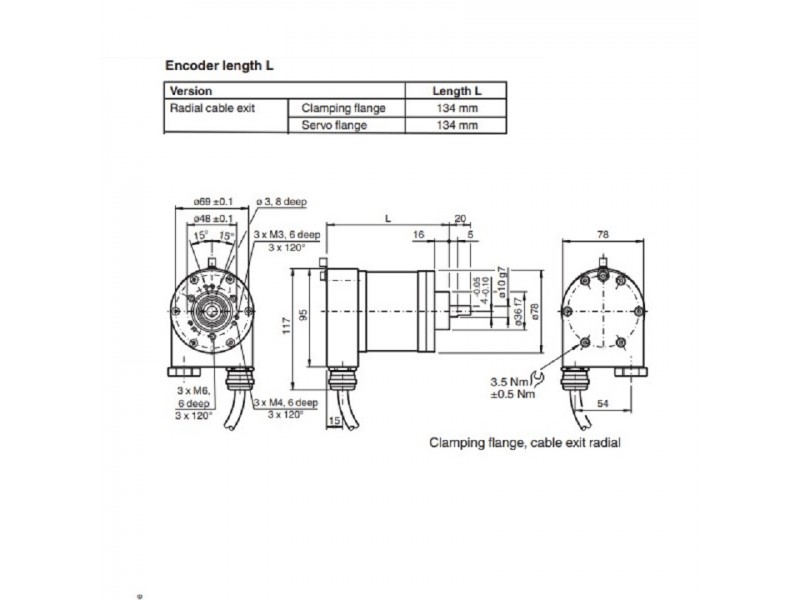

Mechanical specifications

Material

Combination 1 housing: anodized aluminum

flange: anodized aluminum

shaft: Stainless steel 1.4401 / AISI 316

Combination 2 (Inox) housing: Stainless steel 1.4404 / AISI 316L

flange: Stainless steel 1.4404 / AISI 316L

shaft: Stainless steel 1.4401 / AISI 316

Housing nickel-plated steel

Flange Aluminum

Shaft Stainless steel

Mass approx. 2600 g (combination 1)

approx. 3900 g (combination 2)

Rotational speed max. 3000 min -1

Moment of inertia 180 gcm2

Starting torque ≤ 4 Ncm

Shaft load

Axial 60 N

Radial 80 N

Data for application in connection with hazardous areas

EU-type examination certificate ITS 15 ATEX 18372X

IECEx ITS 15.0061X

Marking 1 II 2G Ex d IIC T5 Gb

1 II 2D Ex tb IIIC T100°C Db

Directive conformity

Directive 2014/34/EU IEC 60079-0:2017 , EN IEC 60079-0:2018 , IEC 60079-1:2014 , EN 60079-1:2014 ,

IEC 60079-31:2013 , EN 60079-31:2014
