Modelo: VAZ-T1-FK-G10-2M-PUR-V1-G

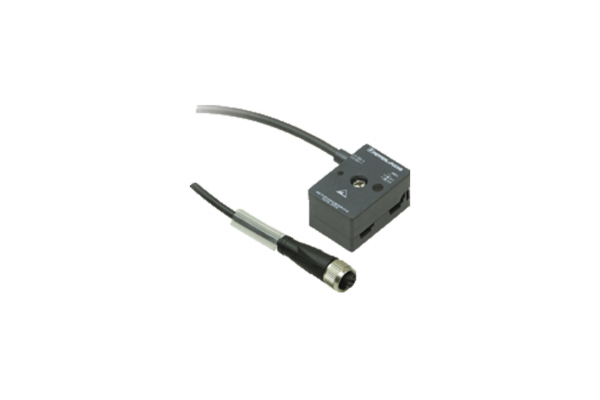

Modulo ASI G10 Pepperl Fuchs VAZ-T1-FK-G10-2M-PUR-V1-G 2 Metros
Marca: Pepperl Fuchs
Modelo: VAZ-T1-FK-G10-2M-PUR-V1-G
Referência: 216031
Descrição do Produto
Splitter box G10, AS-Interface to 1x M12 round connector
General specifications
Construction type Socket, straight
Flat cable terminal AS-Interface
UL File Number E223772 "For use in NFPA 79 Applications only"
Electrical specifications
Rated operating voltage ≤ 32 V PELV ( AS-Interface )
Rated operating current ≤ 3 A
Protection class III
Current loading capacity max. 4 A
Surge protection overvoltage category III
Compliance with standards and directives
Standard conformity
Degree of protection EN 60529:2000
Approvals and certificates
UL approval cULus Listed, Type 1 enclosure
Maximum permissible ambient temperature max. 55 °C (max. 131 °F)
Ambient conditions
Ambient temperature -25 ... 75 °C (-13 ... 167 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Pollution degree 3
Mechanical specifications
Degree of protection IP67
IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*
Connection Flat cable AS-Interface: cable piercing method
Plug connection: M12 x 1 socket (V1)
Material
Contacts CuSn / Au
Housing PBT PC
Body PUR, black
Cable PUR
Mounting screw Stainless steel 1.4305 / AISI 303
Cable
Sheath diameter ∅4,3 mm
Color black
Cores 2 x 0.34 mm2
Length 2 m
Mass 100 g
Tightening torque, fastening screws 1.65 Nm
Note The unused flat cable connector is closed with a seal.
