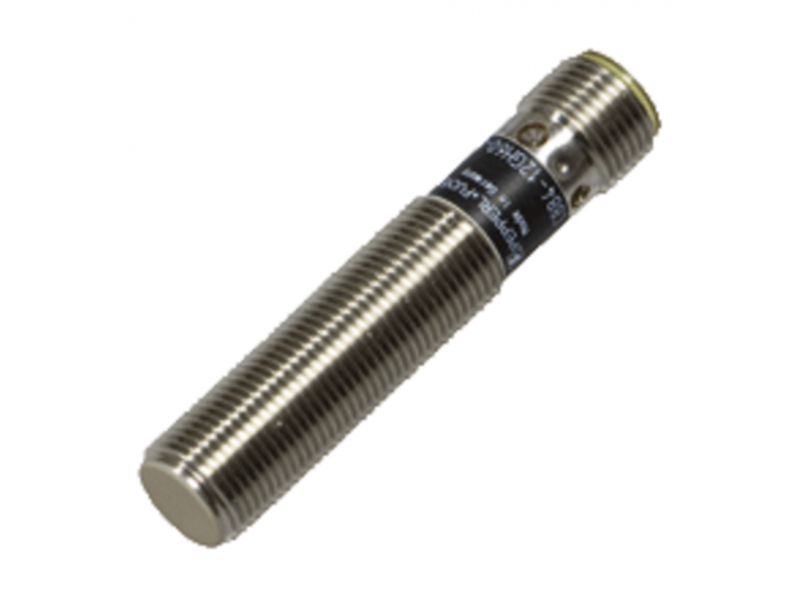

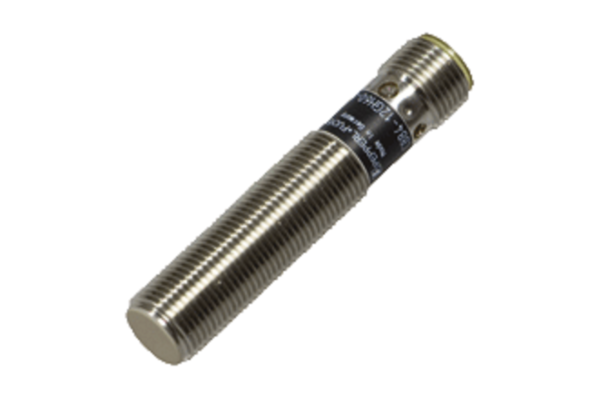

Sensor Capacitivo Pepperl Fuchs CBB4-12GH60-E2-V1 PNP 4mm
Modelo: CBB4-12GH60-E2-V1
Fale conosco e solicite uma cotação
+55 83 98795-5450
+55 83 98795-5450
Modelo: CBB4-12GH60-E2-V1
Sensor Capacitivo Pepperl Fuchs CBB4-12GH60-E2-V1 PNP 4mm
Marca: Pepperl Fuchs
Modelo: CBB4-12GH60-E2-V1
Referência: 210621
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 4 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 2.88 mm
Output type 3-wire
Nominal ratings
Installation conditions
A 0 mm
B 0 mm
C 15 mm
F 15 mm
Operating voltage 10 ... 36 V DC
Switching frequency 0 ... 50 Hz
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2.5 V
Operating current 0 ... 100 mA
No-load supply current ≤ 12 mA
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 636 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Potentiometer sensitivity adjustment
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

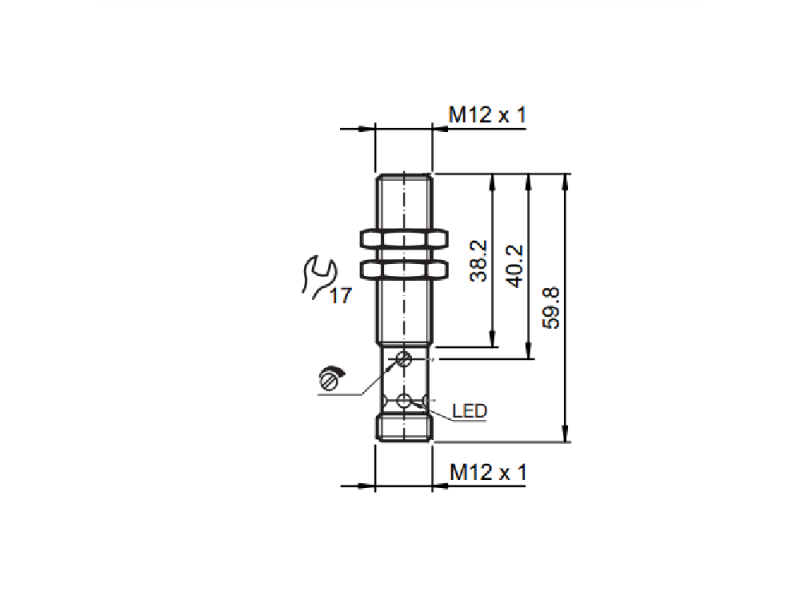

Mechanical specifications
Connection type Connector plug M12 x 1 , 4-pin
Housing material stainless steel 1.4404 / AISI 316L
Sensing face PEEK
Degree of protection IP65
