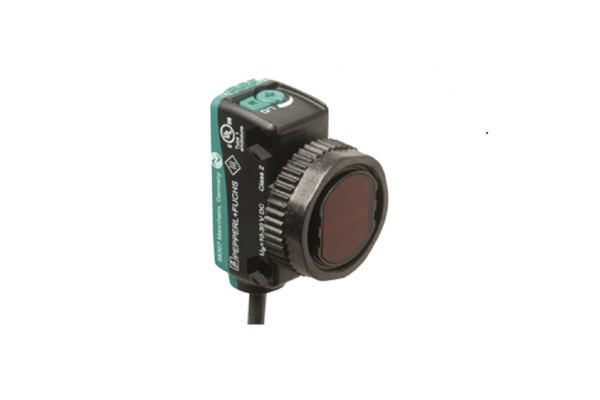

Sensor Fotoelétrico Difuso Pepperl Fuchs OBT300-R103-2EP-IO-0,3M-V1

Marca: Pepperl Fuchs

Modelo: OBT300-R103-2EP-IO-0,3M-V1

Referência: 267075-100265

Descrição do Produto

Triangulation sensor with background suppression

General specifications

Detection range 5 ... 300 mm

Detection range min. 5 ... 25 mm

Detection range max. 5 ... 300 mm

Adjustment range 25 ... 300 mm

Reference target standard white, 100 mm x 100 mm

Light source LED

Light type modulated visible red light

LED risk group labelling exempt group

Black/White difference (6 %/90 %) < 15 % at 300 mm

Diameter of the light spot approx. 18 mm at a distance of 300 mm

Opening angle approx. 3 °

Ambient light limit EN 60947-5-2 : 40000 Lux

Functional safety related parameters

MTTFd 600 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

Operation indicator LED green:

constantly on - power on

flashing (4Hz) - short circuit

flashing with short break (1 Hz) - IO-Link mode

Function indicator LED yellow:

constantly on - object detected

constantly off - object not detected

Control elements Light-on/dark-on changeover switch

Control elements Sensing range adjuster

Electrical specifications

Operating voltage 10 ... 30 V DC

Ripple max. 10 %

No-load supply current < 25 mA at 24 V supply voltage

Protection class III

Interface

Interface type IO-Link ( via C/Q = pin 4 )

Device profile Smart Sensor

Transfer rate COM 2 (38.4 kBaud)

IO-Link Revision 1.1

Min. cycle time 2.3 ms

Process data width Process data input 1 Bit

Process data output 2 Bit

SIO mode support yes

Device ID 0x110604 (1115652)

Compatible master port type A

Output

Switching type The switching type of the sensor is adjustable. The default setting is:

C/Q - Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link

/Q - Pin2: NPN normally closed / dark-on, PNP normally open / light-on

Signal output 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected

Switching voltage max. 30 V DC

Switching current max. 100 mA , resistive load

Usage category DC-12 and DC-13

Voltage drop ≤ 1.5 V DC

Switching frequency 500 Hz

Response time 1 ms

Conformity

Communication interface IEC 61131-9

Product standard EN 60947-5-2

Approvals and certificates

UL approval E87056 , cULus Listed , class 2 power supply , type rating 1

Ambient conditions

Ambient temperature -40 ... 60 °C (-40 ... 140 °F) , fixed cable

-25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains

Storage temperature -40 ... 70 °C (-40 ... 158 °F)

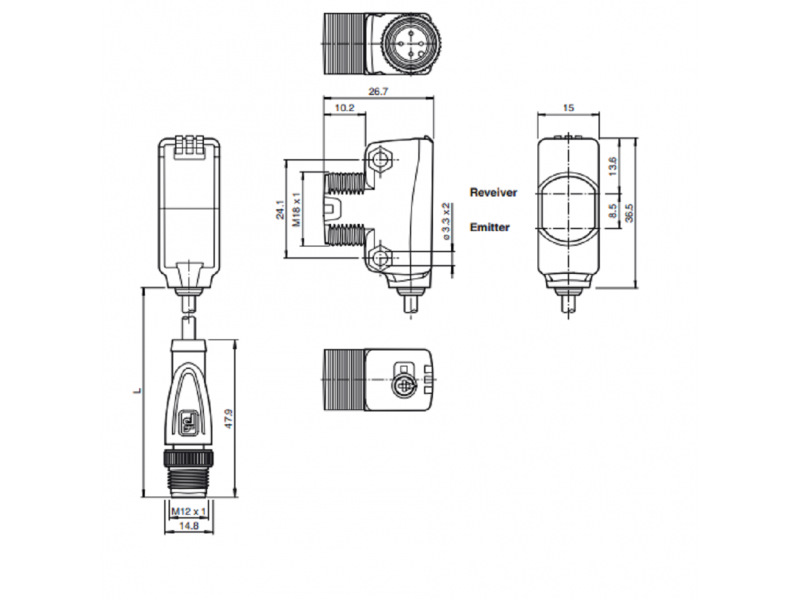

Mechanical specifications

Housing width 15 mm

Housing height 36.5 mm

Housing depth 26.7 mm

Degree of protection IP67 / IP69 / IP69K

Connection 300 mm fixed cable with M12 x 1, 4-pin connector

Material

Housing PC (Polycarbonate)

Optical face PMMA

Mass approx. 23 g

Cable length 0.3 m
