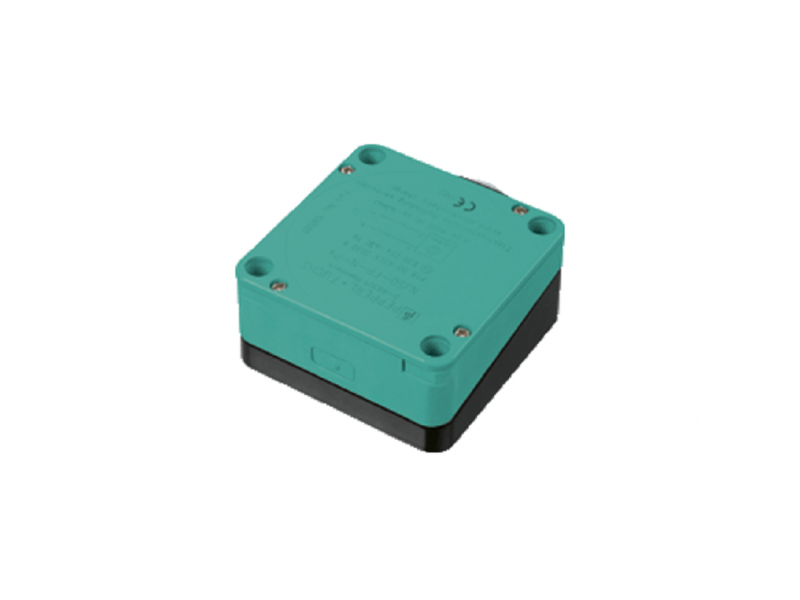

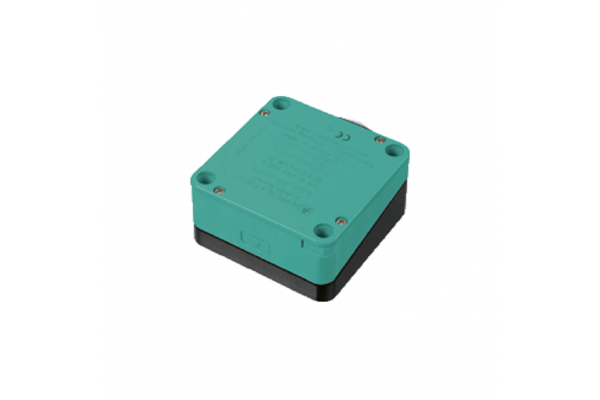

Sensor Indutivo Pepperl Fuchs NJ50-FP-N-P1 NAMUR 50mm
Modelo: NJ50-FP-N-P1
Fale conosco e solicite uma cotação
+55 83 98795-5450
+55 83 98795-5450
Modelo: NJ50-FP-N-P1
Sensor Indutivo Pepperl Fuchs NJ50-FP-N-P1 NAMUR 50mm
Marca: Pepperl Fuchs
Modelo: NJ50-FP-N-P1
Referência: 106504
General specifications
Switching function Normally closed (NC)
Output type NAMUR
Rated operating distance 50 mm
Installation non-flush
Assured operating distance 0 ... 40.5 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.3
Reduction factor r304 0.85
Output type 2-wire
Nominal ratings
Nominal voltage 8.2 V (Ri approx. 1 kΩ)
Switching frequency 0 ... 100 Hz
Current consumption
Measuring plate not detected ≥ 3 mA
Measuring plate detected ≤ 1 mA
Functional safety related parameters
MTTFd 11400 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
NAMUR EN 60947-5-6:2000
IEC 60947-5-6:1999
Standards EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
IECEx approval
Equipment protection level Ga IECEx PTB 11.0021X
Equipment protection level Gb IECEx PTB 11.0021X
Equipment protection level Da IECEx PTB 11.0021X
Equipment protection level Mb IECEx PTB 11.0021X
ATEX approval
Equipment protection level Ga PTB 00 ATEX 2032 X
Equipment protection level Gb PTB 00 ATEX 2032 X
Equipment protection level Da PTB 00 ATEX 2032 X
UL approval cULus Listed, General Purpose
Ordinary Location E87056
Hazardous Location E501628
Control drawing 116-0451
CCC approval
Hazardous Location 2020322315002304
NEPSI approval
NEPSI certificate GYJ16.1394X
ANZEx 19.3001X
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

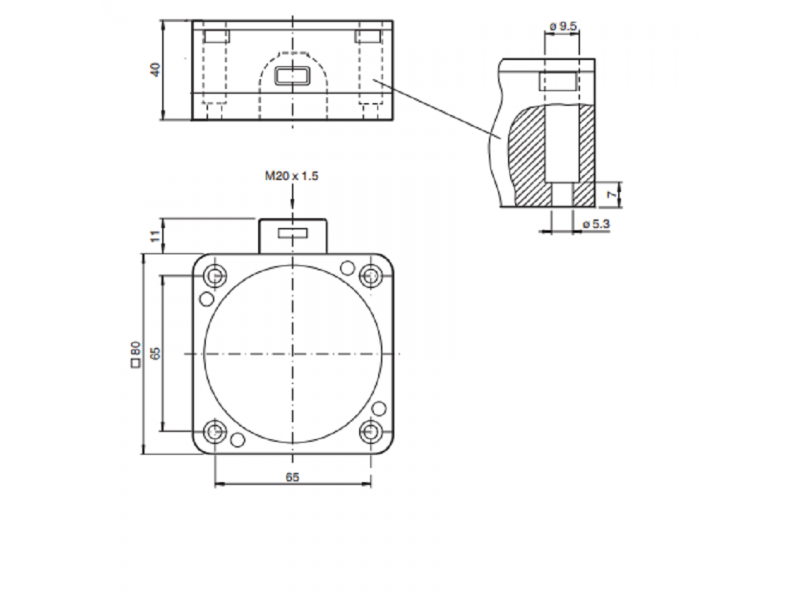

Mechanical specifications
Connection type screw terminals
Information for connection A maximum of two conductors with the same core cross section may be mounted on one terminal connection!
tightening torque 1.2 Nm + 10 %
Core cross-section up to 2.5 mm2 , stripped insulation length: 7 mm
Minimum core cross-section without wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2
Maximum core cross-section without wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2
Connection (system side) screw terminals , M20 x 1.5 cable gland , usable thread length 10 mm , screw-in depth max. 10 mm
Housing material PBT
Sensing face PBT
Degree of protection IP67
Note Tightening torque: 1.8 Nm (housing)
General information
Use in the hazardous area see instruction manuals
