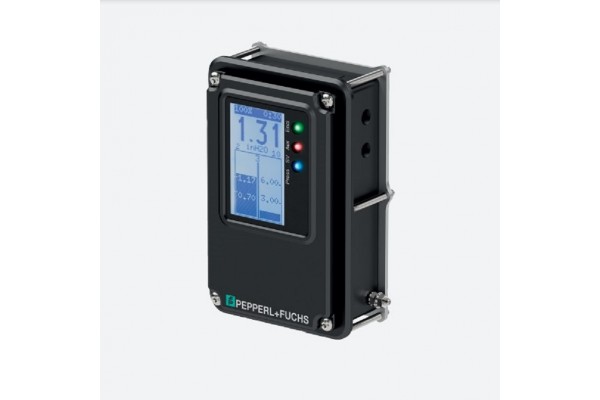

Sistema de Purga e Pressurização tipo Z e Ex pzc Pepperl Fuchs 7500-01-AA-STD-UNV-PNO

Sistema de Purga e Pressurização tipo Z e Ex pzc Pepperl Fuchs 7500-01-AA-STD-UNV-PNO

Marca: Pepperl Fuchs

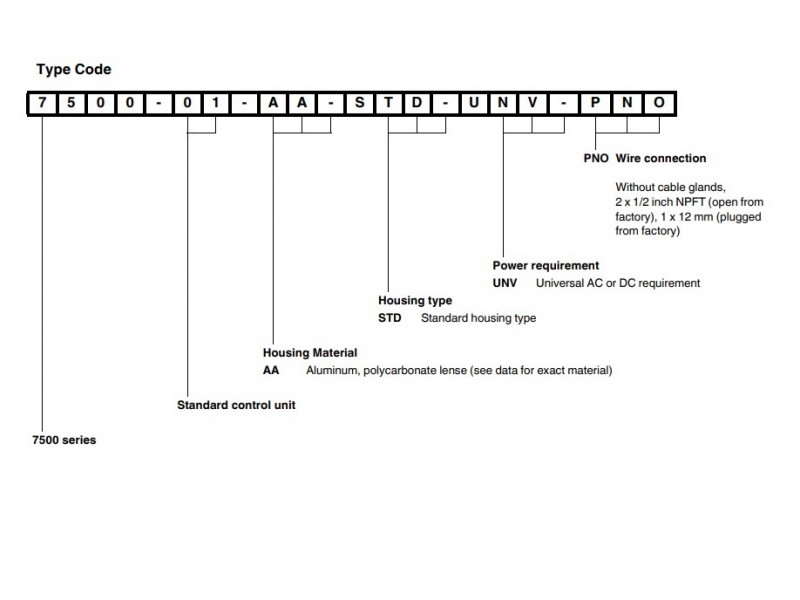

Modelo: 7500-01-AA-STD-UNV-PNO

Function

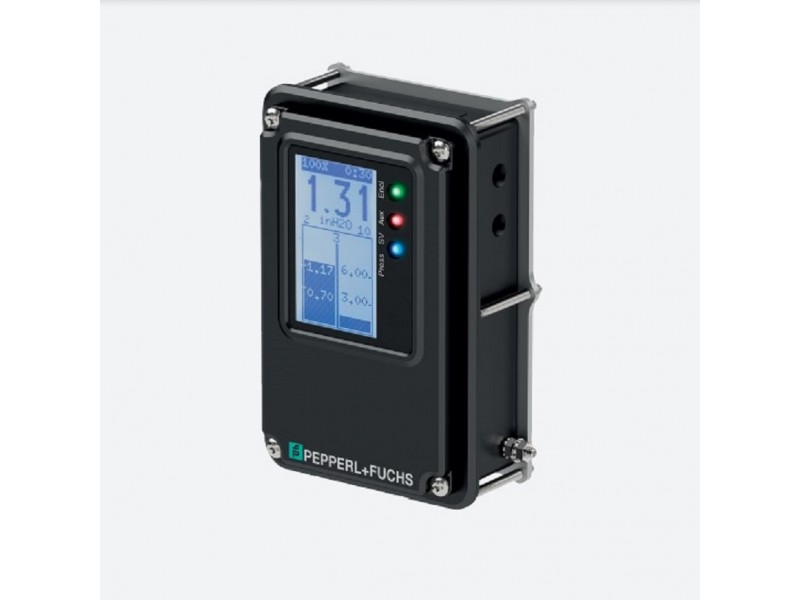

The 7500 series purge and pressurization system consists of a control unit, an enclosure protection vent, and a manual or automatic manifold.

The control unit’s menu-driven touch screen display makes it easy to select pre-programmed and user-selected variables.

The display has 4 LED indicators that allow users to determine system condition from a distance.

A digital manifold system such as the 5500-MAN-... can be used to make the 7500 a fully automatic system. Enclosure pressure and leakage

are monitored. If a loss in enclosure pressure occurs, the solenoid valve engages to restore the defined pressure settings and/or trigger a

pressure drop alarm.

The 7500 series system has NEC, CE Code, ATEX, CCC, and IECEx third-party certifications for Class I, II/Div. 2 Type Z and Zone 2/22 Ex Ppc.

Technical Data

General specifications

Equipment architecture max. enclosure size 450 ft3 (12.7 m3)

Operating mode fully automatic (FA)

Series 7500

Hazardous environment gas or dust

Supply

Rated voltage Ur 20 ... 30 V DC at 0.1 A

90 ... 250 V AC , 50 ... 60 Hz at 0.04 A without solenoid valve

Supply voltage can be line-to-line or line-to-neutral, single phase

OVC II

Power consumption max. 2.7 W / 7.3 VA without valve

Electrical specifications

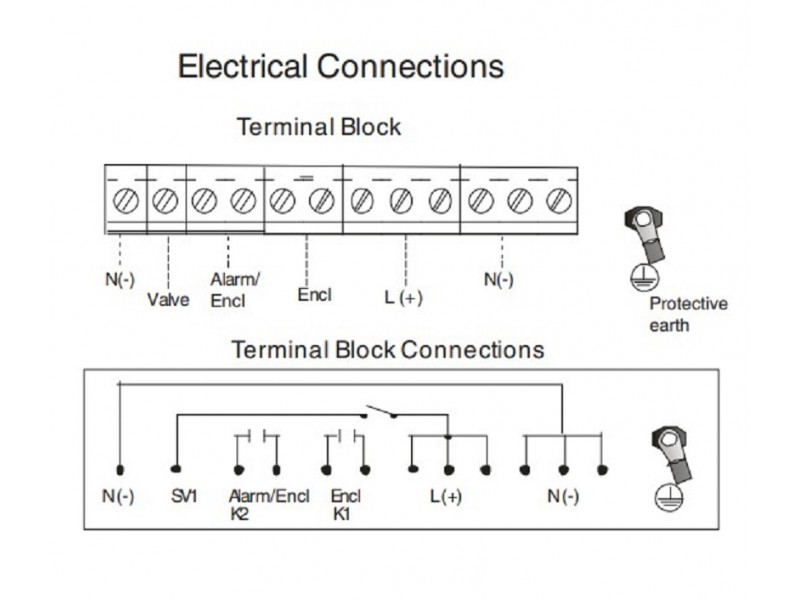

Connection screw terminals -- see manual for specifications on wire size and torque values

Output

Output I

Connection K1, terminals, 1 x NO

Output type enclosure power contacts

Contact loading 5 A at 250 V AC , 5 A at 30 V DC, relays must be externally fused

inrush current: 50 A

Output II

Connection K2, terminals, 1 x NO

Output type alarm and control contacts

Contact loading 5 A at 250 V AC , 5 A at 30 V DC, relays must be externally fused

inrush current: 50 A

Output III

Connection SV1, terminals, L1 powered contact

Output type solenoid manifold, contact

Contact loading 0.5 A at 250 V AC , 0.5 A

Indicators/settings

LED indication K1: Green - Contact K1 is energized (enclosure contacts)

K2: Amber - Contact K2 is energized (alarm/control contacts)

P/SV: Blue - Safe pressure P1 (minimum enclosure pressure)

P/SV: Amber - Solenoid manifold is energized (purging/pressure compensation)

Pneumatic parameters

Protective gas supply compressed air or inert gas, 5 µm filter, free from oil

Pressure requirement supply pressure: 20 ... 120 psig (1.4 ... 8.2 bar)

Safe pressure 0.38 in wc (0.95 mbar) minimum for gas

0.80 in wc (2.0 mbar) minimum for dust

pressure sensing: ± 0.125 in wc (0.31 mbar)

Enclosure pressure 0 ... 5 in wc (0 ... 12.4 mbar)

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EU EN 61326-1:2013

RoHS

Directive 2011/65/EU (RoHS) EN IEC 63000:2018

Conformity

Electromagnetic compatibility EN 61326-3-2:2008, EN 61000-6-2:2005

Emitted interference FCC CFR 47, part 15, subpart B: 2017 , ICES-003, Issue 6:2016, Class A ITE

Ambient conditions

Ambient temperature -40 ... 50 °C (-40 ... 122 °F) at T6

-40 ... 65 °C (-40 ... 149 °F) at T5

-40 ... 70 °C (-40 ... 158 °F) at T4

Storage temperature -40 ... 80 °C (-40 ... 176 °F)

Relative humidity 5 ... 90 %, non-condensing

Altitude max. 2000 m

Vibration resistance 5 ... 100 Hz , 1 g, 12 m/s2, all axes

Impact resistance 30 g, 11 ms, all axes

Mechanical specifications

Connection type electrical: 2 x 1/2 inch NPTF (open from factory)

1 x M12 opening (plugged from factory)

pneumatic: high-pressure port - 1/8 in NPTF, low-pressure port - 1/8 in NPTF

Degree of protection Type 4X , IP66

Material Lens: Makrolon® GP-V polycarbonate

Screws: AISI 316 (1.4401), 304, or 18-8 stainless steel

Housing: A380, A356, or 6061-T6 aluminum

Mounting gasket: Bisco® HT-800 medium cellular silicone

Mounting tabs: SAE 304 stainless steel

M12 plug: 6061-T6 aluminum

Mass 710 g (1 lb 10 oz)

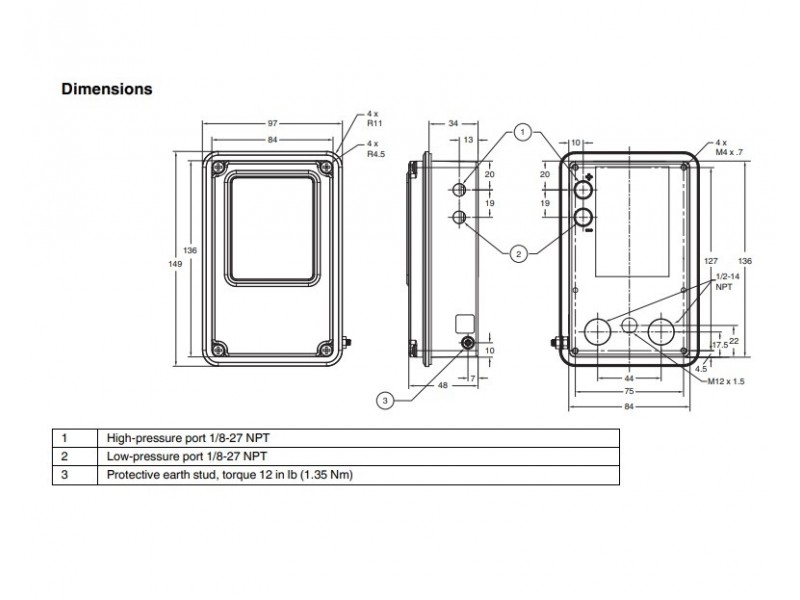

Dimensions 150 x 100 x 50 mm (5.9 x 4 x 2 in)

Data for application in connection with hazardous areas

Certificate

Marking 1 II 3 G Ex ec mc nC [pzc Gc] IIC T6...T4 Gc

1 II 3 D Ex mc tc [pzc Dc] IIIC T60 °C ... T80 °C Dc

Directive conformity

Directive 2014/34/EU IEC/EN 60079-0 , IEC/EN 60079-2 , IEC/EN 60079-7 , IEC/EN 60079-15 ,

IEC/EN 60079-18 , IEC/EN 60079-31

Supplements: EN 61010-1:2010

International approvals

UL approval

cULus Class I, Division 2, Groups A, B, C, D T6 ... T4

Class II, Division 2, Groups F, G T6 ... T4

IECEx approval Ex ec mc nC [pzc Gc] IIC T6...T4 Gc

Ex mc tc [pzc Dc] IIIC T60 °C ... T80 °C Dc

General information

Supplementary information Type Examination Certificate, Statement of Conformity, Declaration of Conformity,

Attestation of Conformity and instructions have to be observed where applicable. For

information see www.pepperl-fuchs.com.
