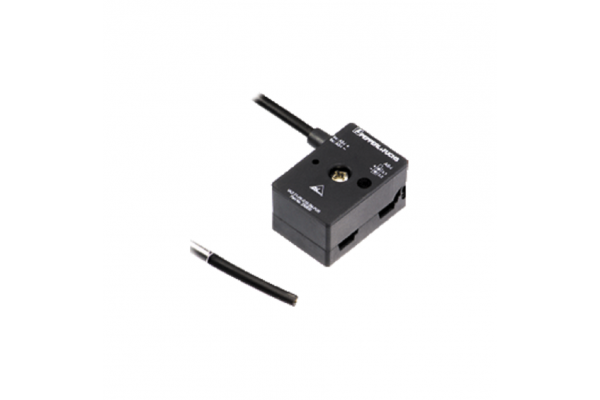

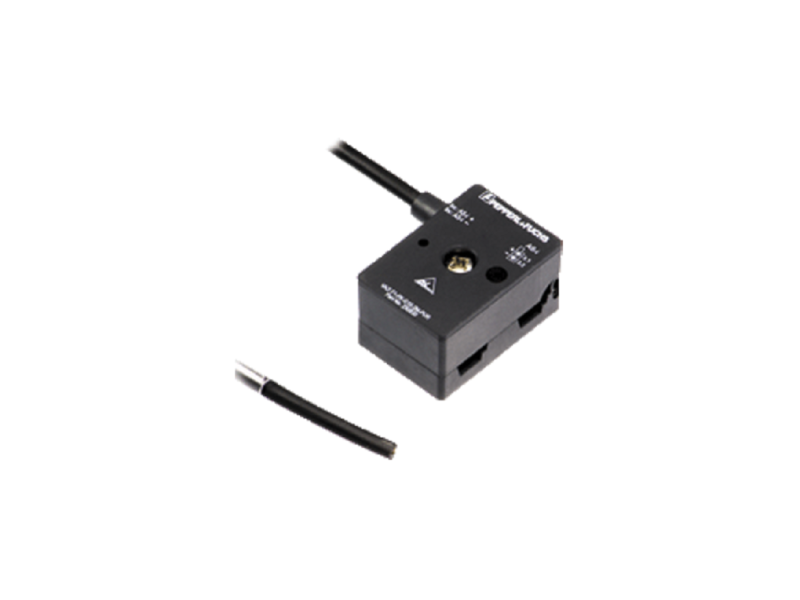

Splitter Box ASI G10 Pepperl Fuchs VAZ-T1-FK-G10-5M-PUR 5 Metros

Modulo ASI G10 Pepperl Fuchs VAZ-T1-FK-G10-5M-PUR 5 Metros

Marca: Pepperl Fuchs

Modelo: VAZ-T1-FK-G10-5M-PUR

Descrição do Produto

G10 junction block, AS-Interface to open cable end

General specifications

Construction type Open cable end

AS-Interface flat cable terminals

UL File Number E223772 "For use in NFPA 79 Applications only"

Electrical specifications

Rated operating voltage ≤ 32 V PELV ( AS-Interface )

Rated operating current ≤ 4 A

Protection class III

Surge protection overvoltage category III

Compliance with standards and directives

Standard conformity

Degree of protection EN 60529:2000

Approvals and certificates

UL approval cULus Listed, Type 1 enclosure

Maximum permissible operating current max. 3 A

Maximum permissible ambient temperature max. 55 °C (max. 131 °F)

Ambient conditions

Ambient temperature -25 ... 75 °C (-13 ... 167 °F)

Storage temperature -25 ... 85 °C (-13 ... 185 °F)

Pollution degree 3

Mechanical specifications

Degree of protection IP67

IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*

Connection Flat cable AS-Interface: cable piercing method

Round cable

Material

Contacts CuSn / Au

Housing PBT PC

Cable PUR

Mounting screw Stainless steel 1.4305 / AISI 303

Cable

Sheath diameter ∅4,3 mm

Color black

Cores 2 x 0.5 mm2

Length 5 m

Mass 100 g

Tightening torque, fastening screws 1.65 Nm

Note The unused flat cable connector is closed with a seal.
