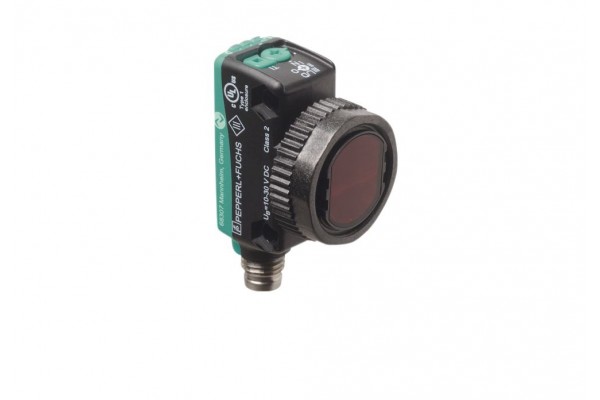

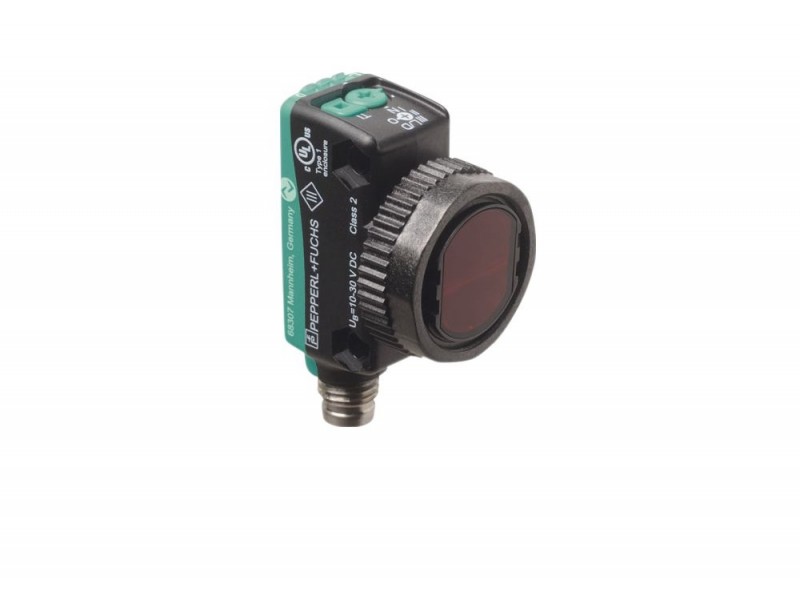

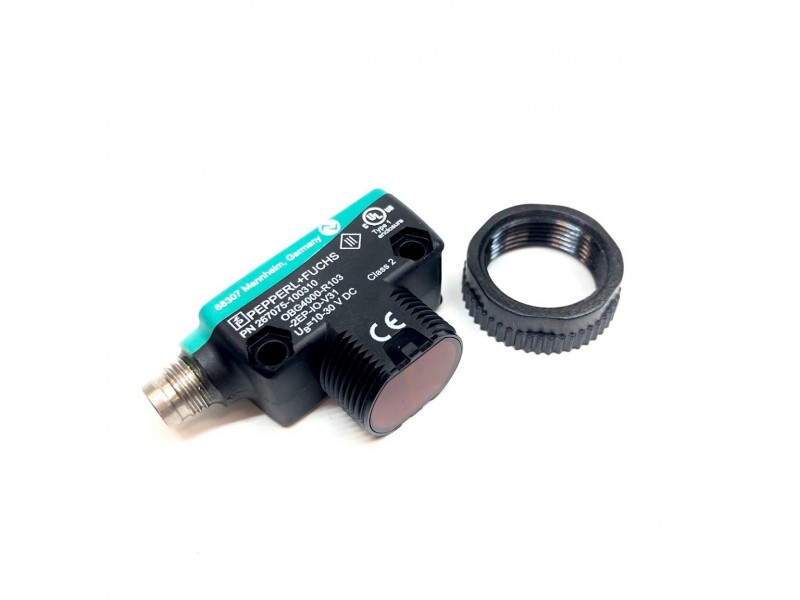

Sensor Fotoelétrico Retrorrefletivo Pepperl Fuchs OBG4000-R103-2EP-IO-V31

Sensor Fotoelétrico Retrorrefletivo Pepperl Fuchs OBG4000-R103-2EP-IO-V31

Marca: Pepperl Fuchs

Modelo: OBG4000-R103-2EP-IO-V31

Referência: 267075-100310

Descrição do Produto

Retroreflective sensor with polarization filter for clear object detection

General specifications

Effective detection range 0 ... 3.5 m in TEACH mode ; 0 ... 4 m at switch position "N"

Reflector distance 0 ... 3.5 m in TEACH mode ; 0 ... 4 m at switch position "N"

Threshold detection range 5 m

Reference target H85-2 reflector

Light source LED

Light type modulated visible red light

LED risk group labelling exempt group

Diameter of the light spot approx. 170 mm at a distance of 3.5 m

Opening angle approx. 5 °

Ambient light limit EN 60947-5-2

Functional safety related parameters

MTTFd 600 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

Operation indicator LED green:

constantly on - power on

flashing (4Hz) - short circuit

flashing with short break (1 Hz) - IO-Link mode

Function indicator Yellow LED:

Permanently lit - light path clear

Permanently off - object detected

Flashing (4 Hz) - insufficient operating reserve

Control elements Teach-In key

Control elements 5-step rotary switch for operating modes selection

Contrast detection levels 10 % - clean, water filled PET bottles

18 % - clear glass bottles

40 % - colored glass or opaque materials

Adjustable via rotary switch

Electrical specifications

Operating voltage 10 ... 30 V DC

Ripple max. 10 %

No-load supply current < 25 mA at 24 V supply voltage

Protection class III

Interface

Interface type IO-Link ( via C/Q = pin 4 )

Transfer rate COM 2 (38.4 kBaud)

IO-Link Revision 1.1

Min. cycle time 2.3 ms

Process data width Process data input 2 Bit

Process data output 2 Bit

SIO mode support yes

Device ID 0x110A03 (1116675)

Compatible master port type A

Output

Switching type The switching type of the sensor is adjustable. The default setting is:

C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link

/Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on

Signal output 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected

Switching voltage max. 30 V DC

Switching current max. 100 mA , resistive load

Usage category DC-12 and DC-13

Voltage drop ≤ 1.5 V DC

Switching frequency 500 Hz

Response time 1 ms

Conformity

Communication interface IEC 61131-9

Product standard EN 60947-5-2

Approvals and certificates

UL approval E87056 , cULus Listed , class 2 power supply , type rating 1

Ambient conditions

Ambient temperature -20 ... 60 °C (-4 ... 140 °F)

Storage temperature -40 ... 70 °C (-40 ... 158 °F)

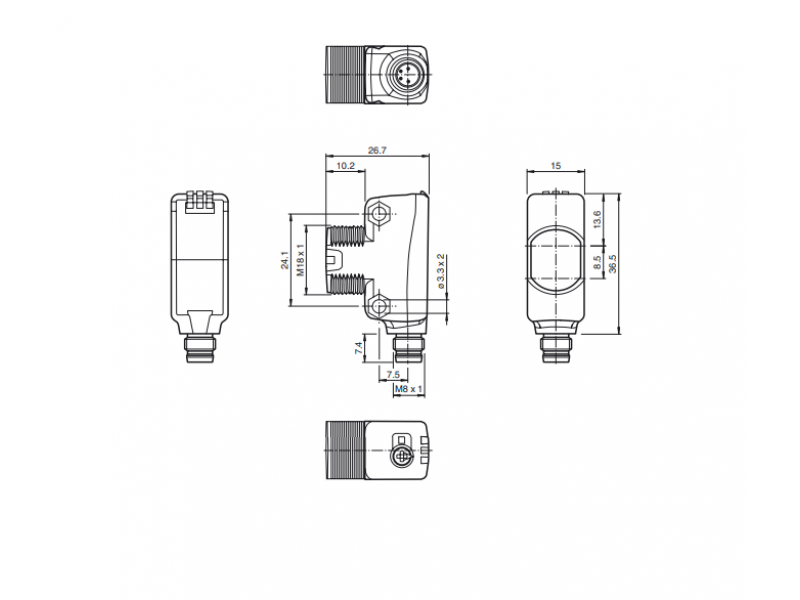

Mechanical specifications

Housing width 15 mm

Housing height 43.9 mm

Housing depth 26.7 mm

Degree of protection IP67 / IP69K

Connection M8 x 1 connector, 4-pin

Material

Housing PC (Polycarbonate)

Optical face PMMA

Mass approx. 12 g
