Sensor Indutivo Pepperl & Fuchs NBB2-8GM25-E2-V3, Sensor Indutivo, Pepperl & Fuchs, NBB2-8GM25-E2-V3.

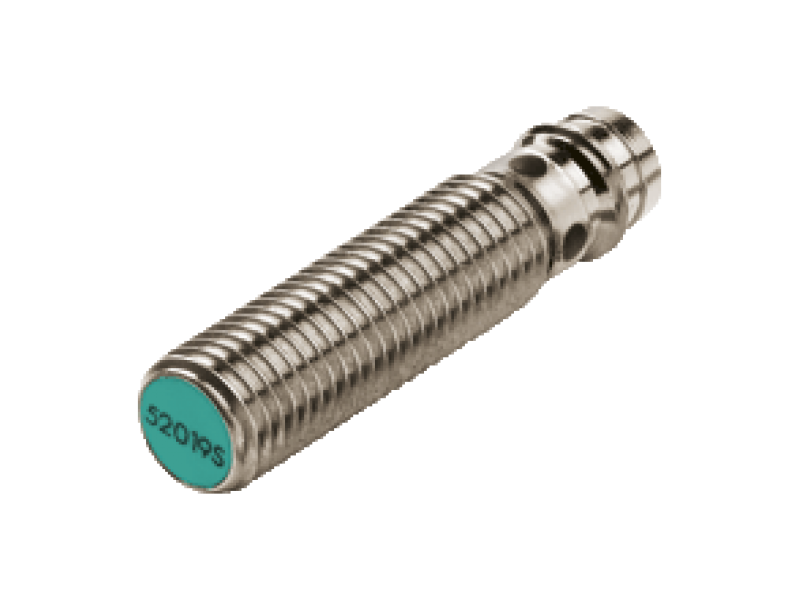

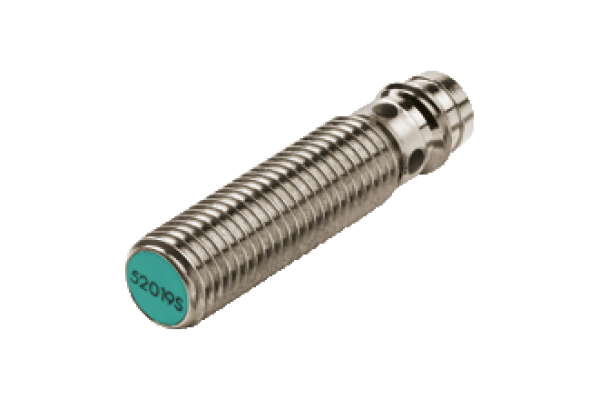

Sensor Indutivo Pepperl & Fuchs NBB2-8GM25-E2-V3

Preço sob
consulta

Quantidade

General specifications
Switching function		Normally open (NO)
Output type		PNP
Rated operating distance		2 mm
Installation		flush
Output polarity		DC
Assured operating distance		0 ... 1.62 mm
Actuating element		mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 8 mm x 8 mm x 1 mm
Reduction factor r_Al		0.4
Reduction factor r_Cu		0.3
Reduction factor r₃₀₄		0.75
Reduction factor r_Brass		0.45
Output type		3-wire
Nominal ratings
Operating voltage		5 ... 30 V
Switching frequency		0 ... 6000 Hz
Hysteresis		typ. 5%
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		≤ 1.5 V
Operating current		0 ... 100 mA
Off-state current		0 ... 0.2 mA
No-load supply current		≤ 10 mA
Time delay before availability		≤ 100 ms
Switching state indicator		Multihole-LED, yellow
Functional safety related parameters
MTTF_d		960 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-40 ... 85 °C (-40 ... 185 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type		Connector plug M8 x 1 , 3-pin
Housing material		brass, nickel-plated
Sensing face		LCP
Degree of protection		IP67
General information
Scope of delivery		2 hex nuts included
