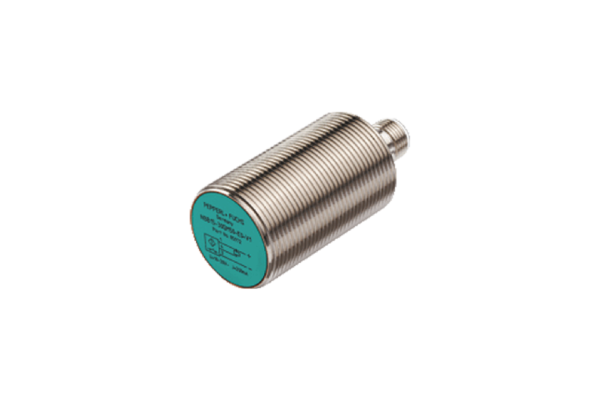

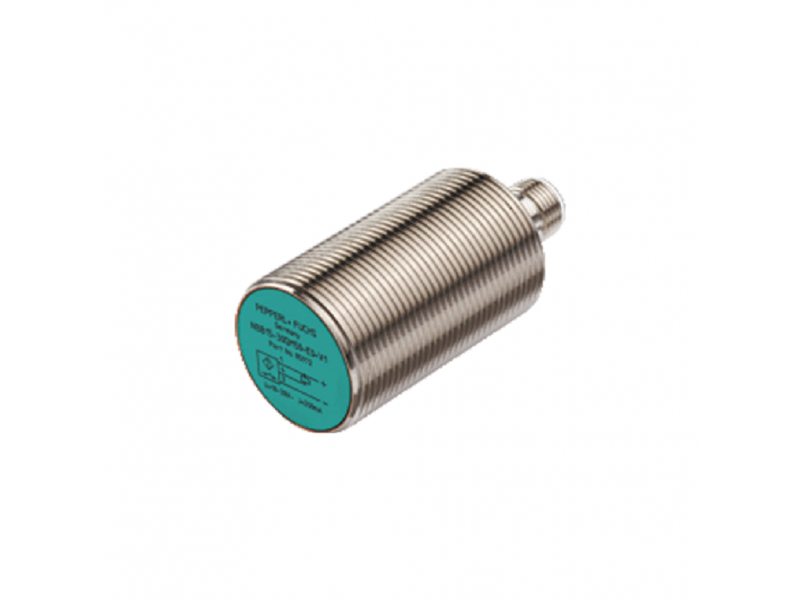

Sensor Indutivo Pepperl Fuchs Nbb15-30gm50-e2-v1 Pnp 15mm

Sensor Indutivo Pepperl Fuchs NBB15-30GM50-E2-V1 PNP 15mm

Marca: Pepperl Fuchs

Modelo: NBB15-30GM50-E2-V1

Referência: 085974

General specifications

Switching function Normally open (NO)

Output type PNP

Rated operating distance 15 mm

Installation flush

Output polarity DC

Assured operating distance 0 ... 12.15 mm ( -25 ... 70 °C (-13 ... 158 °F) )

0 ... 11.4 mm ( -40 ... -25 °C (-40 ... -13 °F) )

Reduction factor rAl 0.3

Reduction factor rCu 0.3

Reduction factor r304 0.75

Output type 3-wire

Nominal ratings

Operating voltage 10 ... 30 V

Switching frequency 0 ... 200 Hz

Hysteresis typ. 5%

Reverse polarity protection reverse polarity protected

Short-circuit protection pulsing

Voltage drop ≤ 3 V

Operating current 0 ... 200 mA

Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C

No-load supply current ≤ 15 mA

Switching state indicator Multihole-LED, yellow

Functional safety related parameters

MTTFd 1058 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Compliance with standards and directives

Standard conformity

Standards EN 60947-5-2:2007

EN 60947-5-2/A1:2012

IEC 60947-5-2:2007

IEC 60947-5-2 AMD 1:2012

Approvals and certificates

UL approval cULus Listed, General Purpose

CSA approval cCSAus Listed, General Purpose

CCC approval CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature -40 ... 70 °C (-40 ... 158 °F)

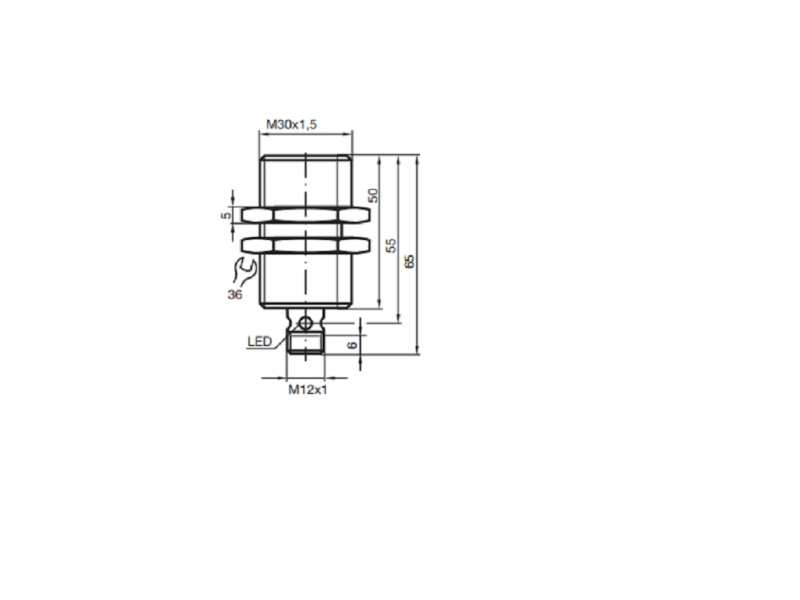

Mechanical specifications

Connection type Connector plug M12 x 1 , 4-pin

Housing material brass, nickel-plated

Sensing face PBT

Degree of protection IP67
