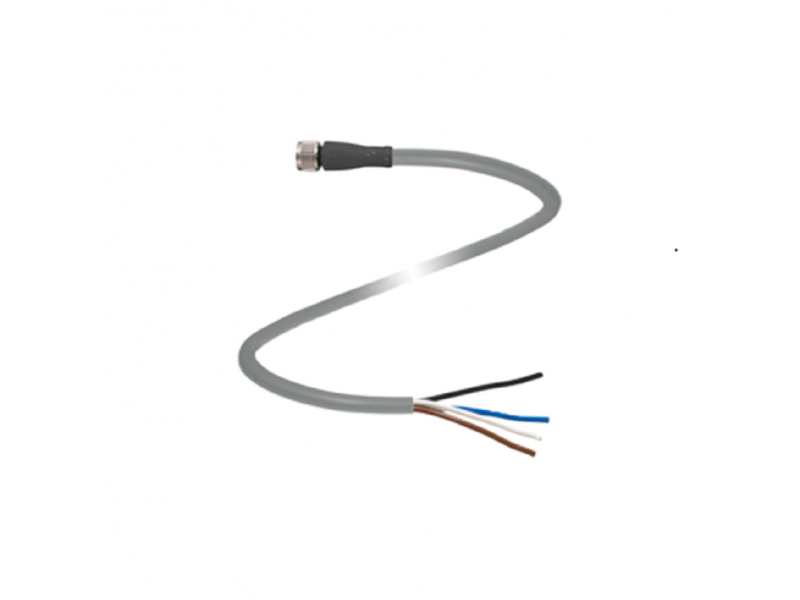

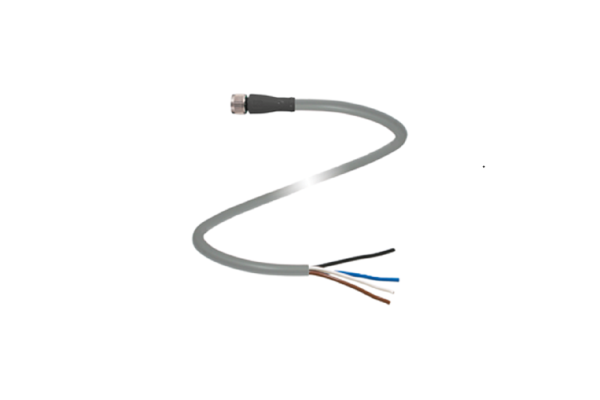

Cabo M8 4 Pinos Pepperl Fuchs V31-GM-5M-PVC 5 Metros

Cabo M8 4 Pinos Pepperl Fuchs V31-GM-5M-PVC 5 Metros

Marca: Prepperl Fuchus

Modelo: V31-GM-5M-PVC

Referência: 109030

Descrição do Produto

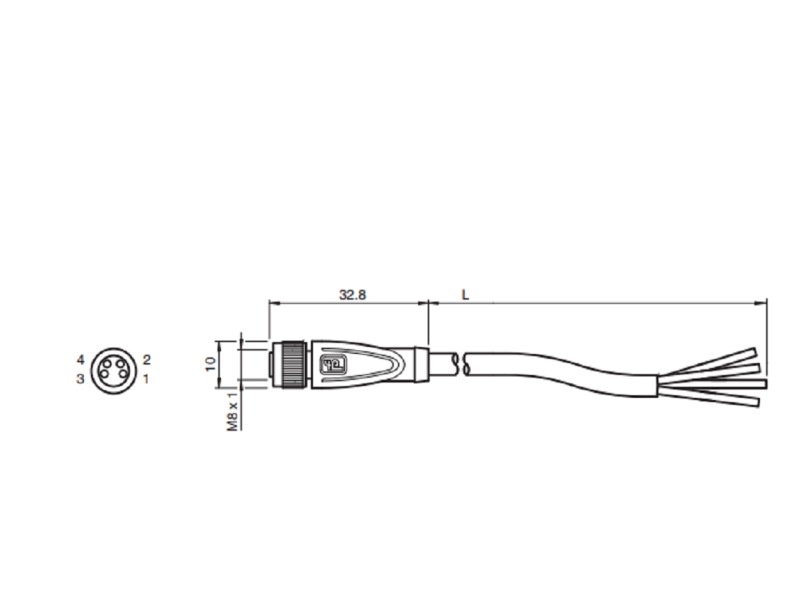

Female cordset single-ended M8 straight A-coded, 4-pin, PVC cable grey

General specifications

Connector 1

Connection socket

Construction type M8

Style straight

Locking screw connection

Number of pins 4

Coding A-coded

Connector 2

Connection cable end

Electrical specifications

Operating voltage max. 30 V AC/DC

Operating current max. 3 A

Conformity

Degree of protection EN 60529

Plug connection connector M8 x 1 : IEC 61076-2-104

Ambient conditions

Ambient temperature

Plug connector -40 ... 90 °C (-40 ... 194 °F)

Cable, fixed -40 ... 70 °C (-40 ... 158 °F)

Cable, flexing -5 ... 70 °C (23 ... 158 °F)

Pollution degree 3

Mechanical specifications

Plug connector

Tightening torque 0.4 Nm

Loosening protection available

Tool installation straight knurling and hexagon nut SW = 9 mm

Mating cycles min. 100

Degree of protection IP68

Cable according to IEC/EN 60228 (DIN VDE 0295) class 5

Sheath diameter 4.3 mm

Bending radius > 15 x cable diameter, moving

> 10 x cable diameter, fixed

Sheath stripping force max. 80 N / 300 mm

Sheath color grey (similar to RAL 7001)

Number of cores 4

Core cross section 0.25 mm2

Cores color Core 1: brown

Core 2: white

Core 3: blue

Core 4: black

Core construction 14 x 0.15 mm ∅

Length 5 m

Cable code Li YY 4 x 0,25

Material

Plug connector

Screw connection Zinc diecast, nickel-plated

Body TPU, black

Seal FKM

Contact surface Au

Flammability V-2

Cable

Sheathing PVC

Core insulation PVC

Flammability flame-resistant
