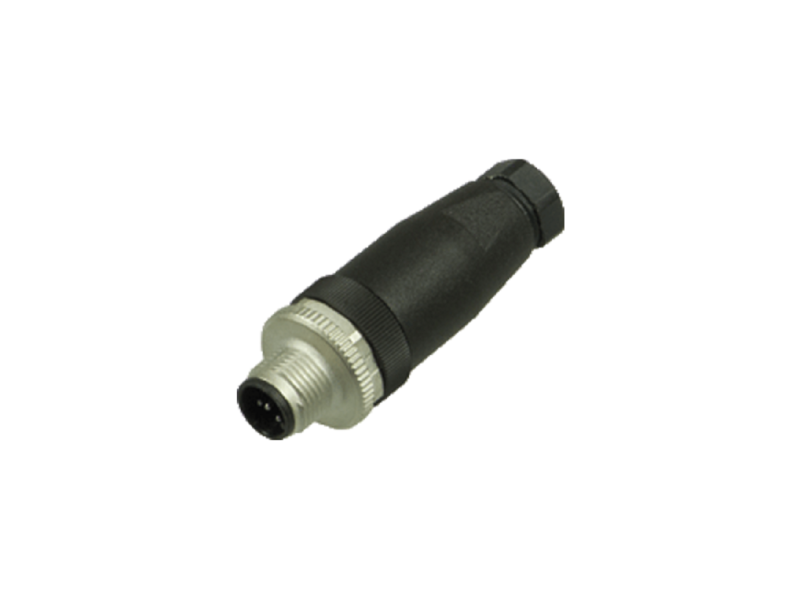

Conector Macho M12 5 pinos Pepperl Fuchs V15S-G-PG9

Conector Macho M12 5 pinos Pepperl Fuchs V15S-G-PG9

Marca: Pepperl Fuchs

Modelo:V15S-G-PG9

Referência: 115060

Descrição do Produto

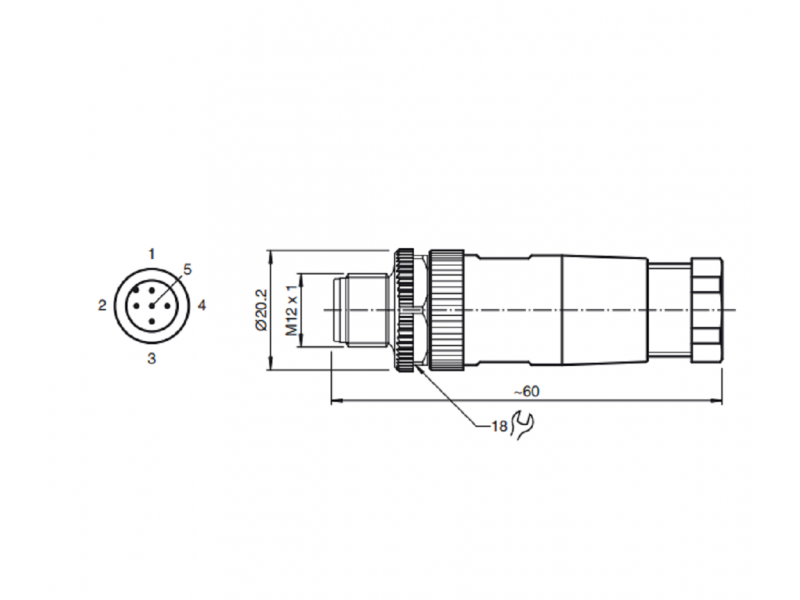

Male connector M12 straight A-coded 5-pin, for cable diameter 6 - 8 mm, field-attachable

General specifications

Connector 1

Connection plug

Construction type M12

Style straight

Locking screw connection

Number of pins 5

Coding A-coded

UL File Number E363587

Electrical specifications

Operating voltage max. 48 V AC / 60 V DC

Operating current max. 4 A

Insulation resistance min. 100 MΩ

Conformity

Degree of protection EN 60529

Plug connection connector M12 x 1 : IEC 61076-2-101

Ambient conditions

Ambient temperature -40 ... 85 °C (-40 ... 185 °F)

Pollution degree 3

Mechanical specifications

Plug connector

Tightening torque 0.6 Nm

Tool installation straight knurling , hexagon nut SW = 18 mm

Mating cycles min. 50

Degree of protection IP67

Connection screw terminals for max. 0.75 mm2 / AWG 18

Cable

Sheath diameter 6 ... 8 mm

Mass 22.94 g

Material

Plug connector

Screw connection CuZn, nickel-plated

Body PA, black

Contact surface CuSnZn
