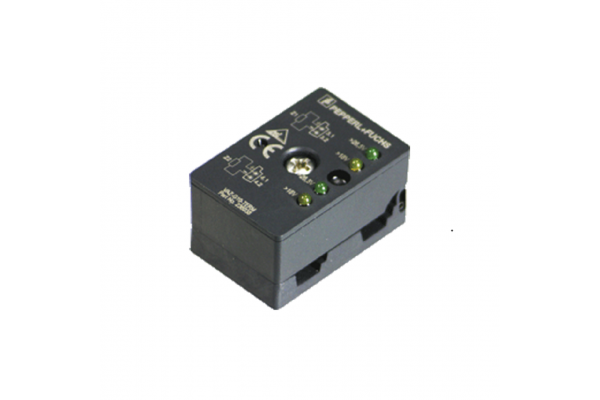

Modulo ASI G10 Pepperl Fuchs VAZ-G10-TERM

Marca: Pepperl Fuchs

Modelo: VAZ-G10-TERM

Referência: 236038

Descrição do Produto

Passive bus termination G10

General specifications

AS-Interface specification V3.0

UL File Number E223772 "For use in NFPA 79 Applications only"

Indicators/operating means

LED green AS-Interface voltage > 26 V: LED lights

LED yellow AS-Interface voltage > 18.5 V: LED lights

Electrical specifications

Rated operating voltage 18.5 ... 31.6 V

Rated operating current ≤ 15 mA per connection

Protection class III

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EU EN 62026-2:2013 EN 61326:2006

Standard conformity

Degree of protection EN 60529:2000

Fieldbus standard EN 62026-2:2013

Emitted interference EN 61000-6-4:2007

AS-Interface EN 62026-2:2013

Noise immunity EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013

Approvals and certificates

UL approval cULus Listed, Type 1 enclosure

Maximum permissible ambient temperature max. 65 °C (max. 149 °F)

Ambient conditions

Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

Storage temperature -25 ... 85 °C (-13 ... 185 °F)

Shock and impact resistance 30 g, 11 ms in 6 spatial directions 3 shocks

10 g, 16 ms in 6 spatial directions 1000 shocks

Vibration resistance 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles

Mechanical specifications

Degree of protection IP67

IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*

Connection via Flat cable

Material

Housing PBT PC

Mounting screw Stainless steel 1.4305 / AISI 303

Mass 100 g

Tightening torque, fastening screws 1.65 Nm
