Modelo: DM320003-2

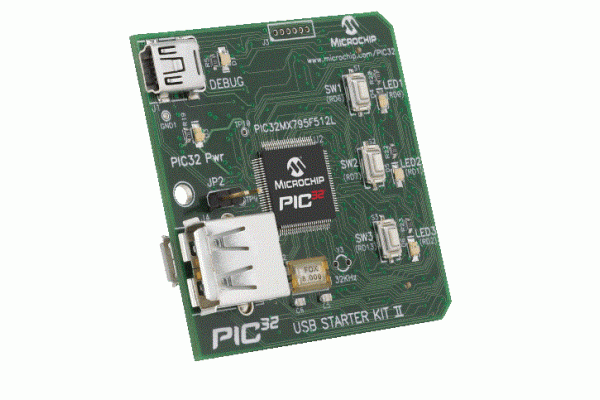

The board contains an on-board programming/debugger, standard A USB and micro A/B connectors, and an expansion header compatible with the PIC32 Starter Kit and expansion board such as I/O Expansion Board (DM320002) or for prototyping your own. Users can develop CAN applications using I/O expansion board (DM320002). The board contains everything needed to develop USB embedded host/device/OTG applications by combining this board with Microchip's free USB software.
The USB Starter Kit II has the same form factor and expansion connector as other PIC32 Starter Kits.
Package Contents
PIC32 USB Starter Board II
Standard A to mini B cable for debugger
Standard A to micro B cable for USB application development
Quick start card directing users to web based instructions for software download and installation.
DEVELOP. PROGRAM. RUN.
Write Code
Free MPLAB IDE v8.41 or newer
Free MPLAB C32 C Compiler with no code size limit
Example project files for HID-class device mode, MSD-class host mode (see note below), CDC-class device mode. Additional projects will be available in the future.
Program Memory
Integrated programmer - all you need is the included USB Cable
Program and verify a full 512k image in under 9 seconds
Debug
Integrated debugger - all you need is the included USB cable
Full C source based debugging in MPLAB IDE
Execute Code
PIC32 running at 80 MHz with 512K Flash, 128K RAM, 8 ch. DMA + 4 ch. DMA dedicated to USB and CAN
USB powered board
USB connectors, user switches, and LEDs
Customize
Expansion connector enables addition of Microchip's PIC32 expansion board or create your own
Majority of MCU signals are present on the connector [Hirose: FX10A-120P/12-SV1(71)]
