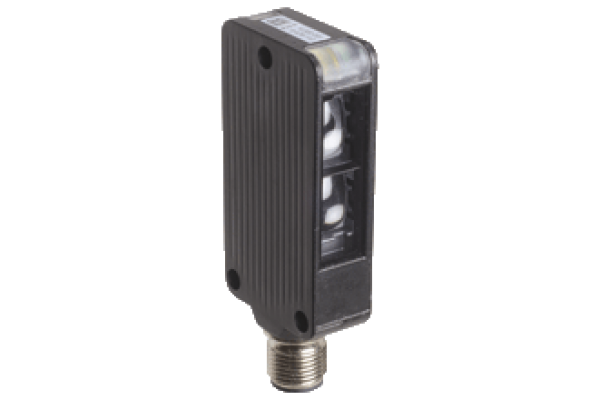

Sensor Fotoelétrico Difuso Pepperl-Fuchs Série MLV41-8-H-*-RT-IO
Modelo: MLV41-8-H-*-RT-IO
Fale conosco e solicite uma cotação
+55 83 98795-5450
+55 83 98795-5450
Modelo: MLV41-8-H-*-RT-IO
Diffuse sensor with measurement core technology, compact housing design, background suppression and 3 further adjustable operating modes, IO-Link interface, 120 mm (MLV41-8-H-120-RT-IO/65b/92/136, MLV41-8-H-120-RT-IO/65b/95/136, MLV41-8-H-120-RT-IO/65b/98/103) or 500 mm (MLV41-8-H-500-RT-IO/65b/92/136, MLV41-8-H-500-RT-IO/65b/95/136) adjustable detection range, red light, 2 push-pull outputs, M12 plug (MLV41-8-H-120-RT-IO/65b/92/136, MLV41-8-H-500-RT-IO/65b/92/136) or M8 plug (MLV41-8-H-120-RT-IO/65b/95/136, MLV41-8-H-500-RT-IO/65b/95/136, MLV41-8-H-120-RT-IO/65b/98/103), Rugged series in corrosion-resistant metal housing, MPT Multi Pixel Technology, IO-link interface for service and process data, Reliable detection of all surfaces, independent of color and structure, Precision background suppression, adjustable
MLV41-8-H-*-RT-IO/65b - Background suppression sensor
Features
- Rugged series in corrosion-resistant metal housing
- MPT Multi Pixel Technology
- IO-link interface for service and process data
- Reliable detection of all surfaces, independent of color and structure
- Precision background suppression, adjustable
- Low sensitivity to target color
- Clear and functional display concept for the operating modes
Specifications
| MLV41-8-H-120-RT-IO/65b/92/136 | MLV41-8-H-120-RT-IO/65b/95/136 | MLV41-8-H-120-RT-IO/65b/98/103 | MLV41-8-H-500-RT-IO/65b/92/136 | MLV41-8-H-500-RT-IO/65b/95/136 | |
| General Specifications | |||||
| Detection range | 20 ... 120 mm | 20 ... 500 mm | |||
| Black-white difference | < 3% | < 5% | |||
| Adjustment range | 20 ... 120 mm | 40 ... 500 mm | |||
| Diagnosis range | 20 ... 120 mm | 20 ... 500 mm | |||
| Reference target | standard white, 100 mm x 100 mm | ||||
| Light source | LED | ||||
| Light type | modulated visible red light | ||||
| Diameter of the light spot | approx. 4 mm at sensor range 100 mm | Approx. 25 mm at sensor range 500 mm | |||
| Angle of divergence | Approx. 2.5 ° | Approx. 3 ° | |||
| Ambient light limit | 25000 Lux | ||||
| Functional safety related parameters | |||||
| MTTFd | 500 a | ||||
| Mission Time (TM) | 20 a | ||||
| Diagnostic Coverage (DC) | 0,00% | ||||
| Indicators/operating means | |||||
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) | ||||
| Function indicator | 2 LEDs yellow : ON: object inside the scanning range; OFF: object outside the scanning range | ||||
| Control elements | Sensing range adjuster | ||||
| Parameterization indicator | IO link communication: green LED goes out briefly (1 Hz) | ||||
| Electrical specifications | |||||
| Operating voltage | 10 ... 30 V DC , class 2 | ||||
| Ripple | max. 10 % | ||||
| No-load supply current | max. 25 mA at 24 V supply voltage | ||||
| Interface | |||||
| Interface type | IO-Link | ||||
| Protocol | IO-Link V1.0 | ||||
| Mode | COM 2 (38.4 kBaud) | ||||
| Output | |||||
| Switching type | dark on | ||||
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | ||
| Switching voltage | max. 30 V DC | ||||
| Switching current | max. 100 mA | ||||
| Voltage drop | ≤ 2 V DC | ||||
| Switching frequency | 200 Hz | ||||
| Response time | 2.5 ms | ||||
| Conformity | |||||
| Product standard | EN 60947-5-2 | ||||
| Approvals and certificates | |||||
| UL approval | cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) | ||||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | ||||
| Ambient conditions | |||||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | -20 ... 60 °C (-4 ... 140 °F); 60 ... 70 °C (140 ... 158 °F) ; max. 20,000 hours = 2.5 years (continuous operation) | -20 ... 60 °C (-4 ... 140 °F) | ||
| Storage temperature | -40 ... 75 °C (-40 ... 167 °F) | ||||
| Mechanical specifications | |||||
| Housing width | 31 mm | ||||
| Housing height | 56.5 mm | ||||
| Housing depth | 13.6 mm | ||||
| Degree of protection | IP67 | ||||
| Connection | 4-pin, M12 x 1 connector | M8 x 1 connector, 4-pin | 4-pin, M12 x 1 connector | M8 x 1 connector, 4-pin | |
| Material | |||||
| Housing | Aluminum , Delta-Seal coated | ||||
| Optical face | glass pane | ||||
| Connector | metal | ||||
| Mass | approx. 40 g | ||||
