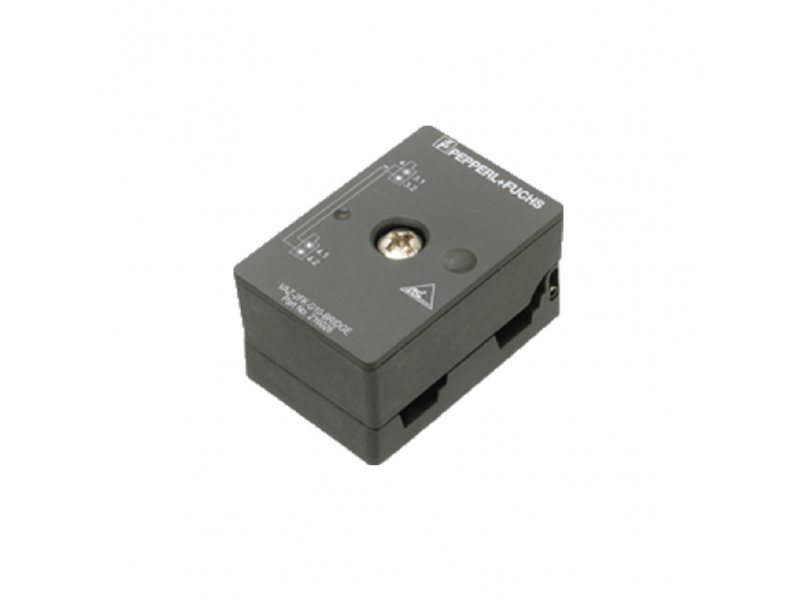

Splitter Box ASI G10 Pepperl Fuchs VAZ-2FK-G10-BRIDGE
Modelo: VAZ-2FK-G10-BRIDGE
Fale conosco e solicite uma cotação
+55 83 98795-5450
+55 83 98795-5450
Modelo: VAZ-2FK-G10-BRIDGE
Modulo ASI G10 Pepperl Fuchs VAZ-2FK-G10-BRIDGE
Marca: Pepperl Fuchs
Modelo: VAZ-2FK-G10-BRIDGE
Referência: 216026
Descrição do Produto
Splitter box G10, flat cable to flat cable
General specifications
Construction type Flat cable terminals
UL File Number E223772 "For use in NFPA 79 Applications only"
Electrical specifications
Rated operating voltage ≤ 32 V PELV
Rated operating current ≤ 8 A
Protection class III
Current loading capacity 12 A with a wire cross section of 2.5 mm2
Surge protection overvoltage category III
Compliance with standards and directives
Standard conformity
Degree of protection EN 60529:2000
Approvals and certificates
UL approval cULus Listed, Type 1 enclosure
Ambient conditions
Ambient temperature -25 ... 75 °C (-13 ... 167 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Pollution degree 3
Mechanical specifications
Degree of protection IP67
IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*
Connection Flat cable: cable piercing method
Material
Contacts CuSn / Au
Housing PBT PC
Mounting screw Stainless steel 1.4305 / AISI 303
Mass 40 g
Tightening torque, fastening screws 1.65 Nm
