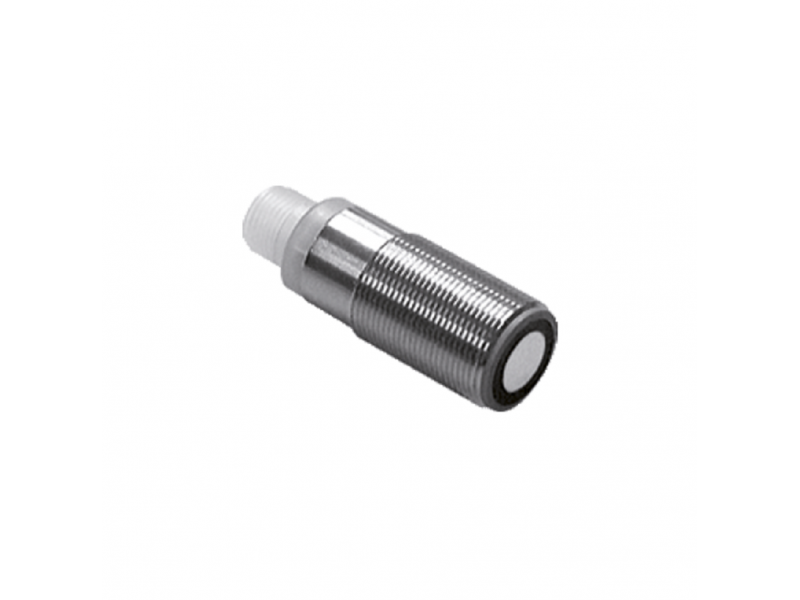

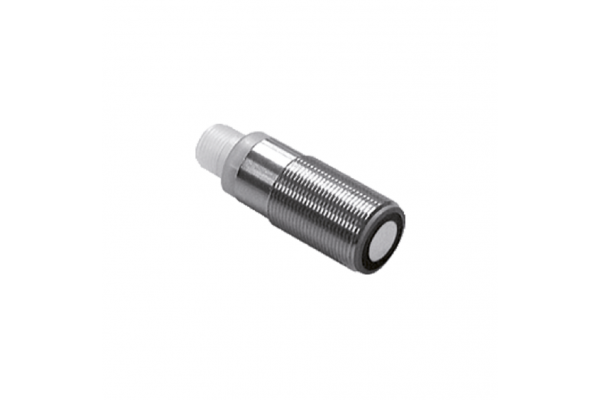

Sensor Ultrassônico Pepperl Fuchs Ub800-18gm40-i-v1

Sensor Ultrassônico Pepperl Fuchs UB800-18GM40-I-V1

Marca: Pepperl Fuchs

Modelo: UB800-18GM40-I-V1

Referência: 205340

Descrição do Produto

Single head system

General specifications

Sensing range 50 ... 800 mm

Adjustment range 70 ... 800 mm

Dead band 0 ... 50 mm

Standard target plate 100 mm x 100 mm

Transducer frequency approx. 255 kHz

Response delay approx. 100 ms

Indicators/operating means

LED green Power on

LED yellow solid yellow: object in the evaluation range

yellow, flashing: program function, object detected

LED red solid red: Error

red, flashing: program function, object not detected

Electrical specifications

Operating voltage 10 ... 30 V DC , ripple 10 %SS

No-load supply current ≤ 20 mA

Input

Input type 1 program input

lower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB

input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s

Output

Output type 1 analog output 4 ... 20 mA, short-circuit/overload protected

Default setting evaluation limit A1: 70 mm evaluation limit A2: 800 mm

Resolution 0.4 mm at max. sensing range

Deviation of the characteristic curve ± 1 % of full-scale value

Repeat accuracy ± 0.5 % of full-scale value

Load impedance 0 ... 300 Ω at UB > 10 V;

0 ... 500 Ω at UB > 15 V

Temperature influence ± 1.5 % of full-scale value

Compliance with standards and directives

Standard conformity

Standards EN 60947-5-2:2007+A1:2012

IEC 60947-5-2:2007 + A1:2012

EN 60947-5-7:2003

IEC 60947-5-7:2003

Approvals and certificates

EAC conformity TR CU 020/2011

TR CU 037/2016

UL approval cULus Listed, General Purpose

CSA approval cCSAus Listed, General Purpose

CCC approval CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

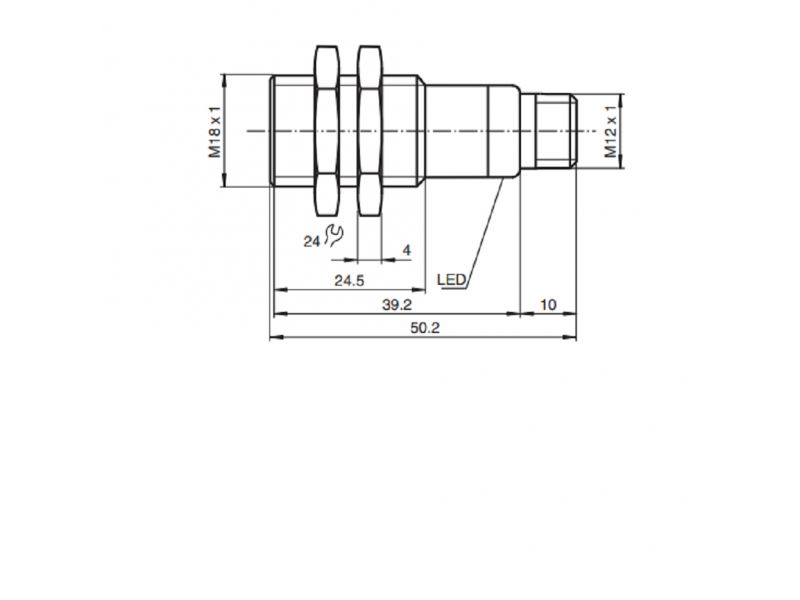

Mechanical specifications

Connection type Connector plug M12 x 1 , 4-pin

Degree of protection IP67

Material

Housing brass, nickel-plated

Transducer epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT

Mass 25 g
