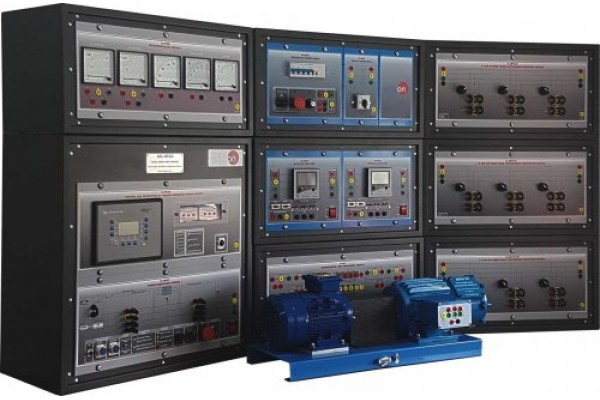

Uma Rede Inteligente é uma rede elétrica que inclui uma variedade de medidas operacionais e de energia, incluindo medidores inteligentes, aparelhos inteligentes, fontes de energia renováveis e recursos de eficiência energética. O controle da produção e distribuição de eletricidade é um aspecto importante das redes inteligentes estudadas com o "AEL-BSGC", aplicativo de redes inteligentes de energia controlada por computador. O aplicativo Smart Grids de energia controlada por computador, “AEL-BSGC”, foi projetado para estudar as Smart Grids nos campos de geração, transmissão, distribuição e consumo de carga.
The application includes the following modules:
• N-ALI01. Industrial Main Power Supply.
Supply voltage: 400 VAC, 3PH+N+G.
ON-OFF removable key.
Output voltage connections:
Three-Phase + Neutral: 400 VAC.
Single-Phase: 230 VAC
Three-Phase supply hose with IP44 3PN+E 32A 400V connecting plug.
Differential magnetothermal, 4 poles, 25 A, 300 mA AC 6 KA.
• N-PPIM1. Instrumentation Module 1.
Measured range: 0 - 1.5 KW.
Measured range: 0 - 1.5 KVar.
Measured range: 0 - 500 V.
Measured range: 45 - 55 Hz.
Measured range: 0 - 10 A.
• N-PPCM1. Control and Protection of Turbine-Generator Group Module 1.
Automatic speed and voltage controller:
Enables to connect up to 16 electric generators in parallel-island with distribution of active and reactive load and start/stop in function of the load demand.
Enables to connect a generator in parallel with the grid.
Enables different switches control modes, such as opening, closing and synchronization.
Analogical outputs to control voltage and frequency regulators.
Three-phase measurement of the grid and the generator voltage.
Three-phase measurement of the generator intensity and power.
Single-phase measurement of the grid intensity.
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), voltage asymmetry, detection of dead busbars, overvoltage (32), load unbalance (46), negative sequence power/reduced power (32R/F), overcurrent by defined curve (50/51), inverse time overcurrent (IEC255), measured ground fault (50N/51N), phase rotation, switches faults.
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), vector jump, phase rotation.
Alarm 1: Reverse power.
Alarm 2: Overcurrent.
Alarm 3: Over/undervoltage.
Alarm 4: Inverse Time Overcurrent.
Alarm 5: Over/under frequency.
Alarm 6: Shutdown Alarms.
Four operation signals:
Ready for operation.
Permission for synchronization.
Reverse Power relay.
Ethernet connection: RJ45 communication port.
• N-PSUB1. Power Generation Substation Module 1.
Supply voltage: 400 VAC, 3PH+N.
ON / OFF switch.
Power and signal connections:
Three-phase turbine supply hose with IP44 3PN+E 32A 400V connecting plug.
Three-phase generator supply hose with IP44 3PN+E 32A 400V connecting plug.
Three switches to choose between the different modes:
Local and remote control mode.
Manual and automatic speed control.
Manual and automatic excitation control
Three control switches to:
Start and stop the turbine.
Give permission to synchronize the generator with the grid.
Give permission to close 52NET circuit breaker.
Two potentiometers to regulate:
Emergency stop button.
Two circuit breakers for synchronization and stand-alone operations.
Different terminals to measure.
Ethernet connection: RJ45 communication port for SCADA remote control.
• N-AE1. Transmission Lines Simulation Module.
Supply voltage: 400 VAC, 3PH+N.
Three-phase line with variable parameters.
Concentrated parameters line.
Four capacitances benches between lines with three capacitances of 1 µF each one.
Two capacitances benches between line and ground composed by two capacitances of 1 and 2 µF.
Resistance of the line that can be wiring independently:
Three resistors of 15 Ω.
Three resistors of 30 Ω.
Inductance of the line with several set values: 33 mH, 78 mH, 140 mH, 193 mH and 236 mH.
Neutral resistor of 10 Ω.
• N-EALD. Network Analyzer Unit with Computer Data Acquisition (2 units).
Supply voltage: 400 VAC.
Input terminals: Input connection with the measurement point.
Output terminals: Output connection with the measurement point.
Digital outputs: Three digital outputs are used for pulses or alarms, or for combining both.
RS-485 Communication port.
Fuses: 3 x10 A.
Network Analyzer Display. It shows:
Active, reactive and apparent power.
Active, reactive and apparent energies.
Lines and phase currents.
