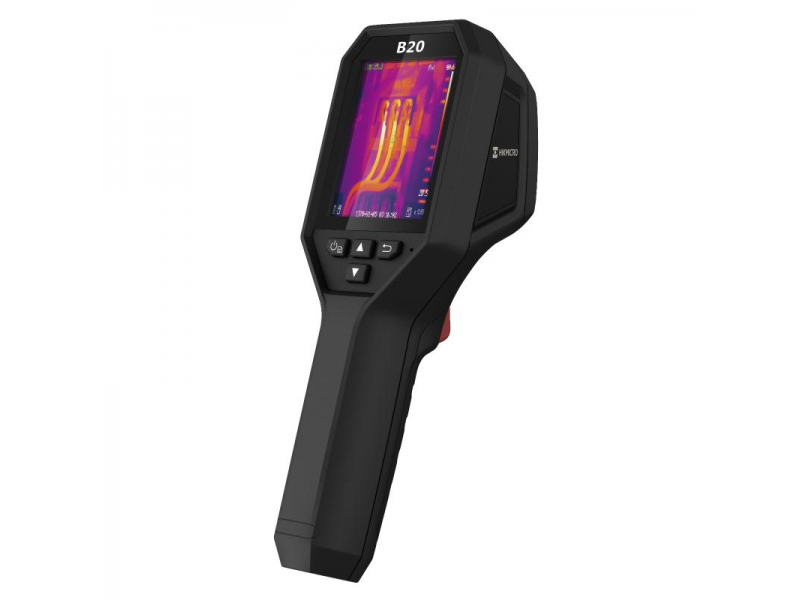

Câmera Térmica Hikmicro B20

Name: Câmera Térmica Hikmicro B20
Brand: HikMicro
Availability: InStock

Preço sob
consulta

Quantidade

Especificações

Infrared Image
IR Resolution	256 × 192 (49,152 pixels)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Image Frequency	25 Hz
Detector Pitch	12 μm
Spectral Range	7.5 to 14 μm
Focal Length	3.6 mm
F-number	F1.0
Field of View (FOV)	37.2° × 50.0°
Spatial Resolution (IFOV)	3.3 mrad
Focus Mode	Focus Free
Min. Focus Distance	0.3 m (0.98 ft)

Image Display
Visual Camera	1600 × 1200 (2 MP)
Display	240 × 320 Resolution, 3.2”LCD Screen
Image Modes	Thermal/Visual/Fusion/PIP
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow
Color Alarm	Above alarm

Measurement and Analysis
Object Temperature Range	-20°C to 550°C (-4°F to 1022°F)
Accuracy	Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools	Center Spot, Hot Spot, Cold Spot User-definable: 3 spots
Level and Span Mode	Auto/Manual

Data Storage and Communication
Storage Media	Built-in 16 GB flash memory
Image Storage Capacity	Approx. 90,000 Images

General
Wi-Fi	802.11 b/g/n (2.4GHz)
USB Interface	USB Type-C
LED Light	Yes
Battery Type	Rechargeable Li-ion battery
Battery Operating Time	Approx. 6 hours
Battery Charging Time	Approx. 3 hours fully charged
Protection Level	IP54
Drop Test Height	2 m (6.56 ft)
Working Temperature Range	-10°C to 50°C (14°F to 122°F)
Storage Temperature Range	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	< 95% non-condensing
Weight	Approx. 380 g (0.84 lb)
Dimension	221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in)
Tripod Mounting	UNC ¼”-20
