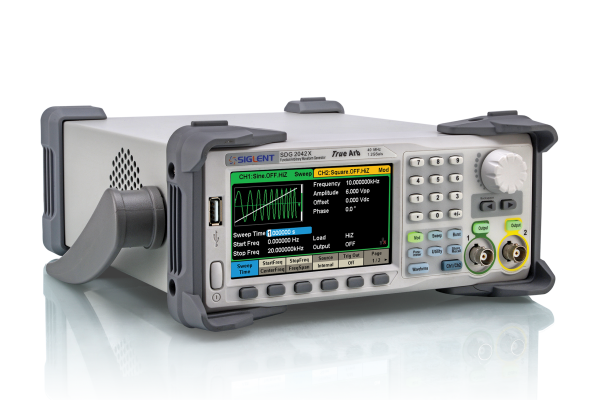

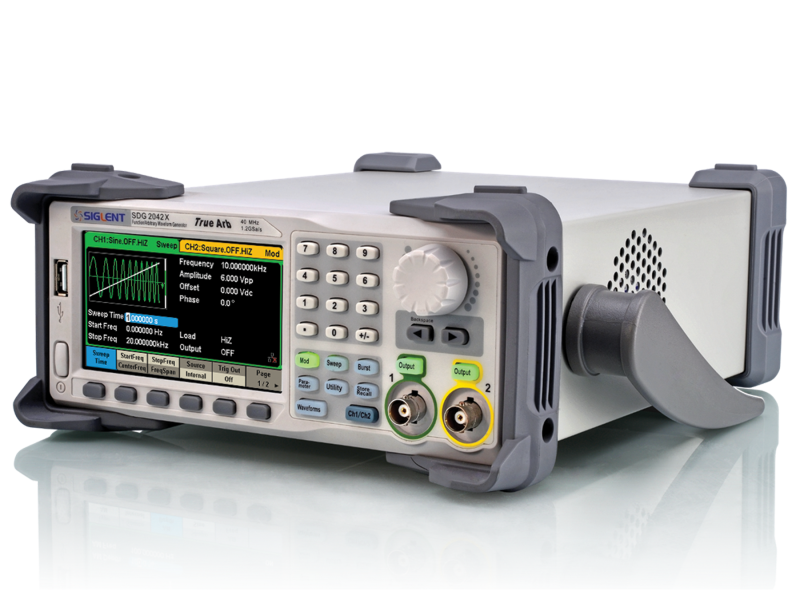

Gerador de Funções Arbitrárias Siglent Série SDG2000X
Modelo:SDG2000X
Fale conosco e solicite uma cotação
+55 83 98795-5450
Gerador de Funções, gerador de ondas Arbitrárias, gerador de funções arbitrárias, Siglent, Série SDG5000, gerador de Funções Arbitrárias Siglent Série SDG5000
O SDG2000X da SIGLENT é uma série de geradores de forma de onda arbitrária de canal duplo com especificações de largura de banda máxima de até 120 MHz, taxa de amostragem de 1,2 GSa/s e resolução vertical de 16 bits. As tecnologias exclusivas TrueArb e EasyPulse ajudam a resolver os pontos fracos inerentes aos geradores DDS tradicionais ao gerar formas de onda arbitrárias, quadradas e de pulso.
With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.
Dual-channel, 120 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
Innovative TrueArb technology supports user-defined waveforms from 8 to 8 Mpts and user-defined sample rate from 1 μSa/s to 75 MSa/s
Large Touch Screen Display
Easily combine waveforms through a single output, including noise and arbitrary waveforms
Models
SDG2122X: Max Output Frequency of 120 MHz, Max Sampling Rate of 1.2 GSa/s, 16-bit Vertical Resolution, Waveform Lenght of 8 pts to 8 Mpts; 2ch
SDG2082X: Max Output Frequency of 80 MHz, Max Sampling Rate of 1.2 GSa/s, 16-bit Vertical Resolution, Waveform Lenght of 8 pts to 8 Mpts; 2ch
SDG2042X: Max Output Frequency of 40 MHz, Max Sampling Rate of 1.2 GSa/s, 16-bit Vertical Resolution, Waveform Lenght of 8 pts to 8 Mpts; 2ch
Key Features
Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely
high precision in pulse width and rise/fall times adjustment
Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM
Sweep and Burst function, Harmonics mode supported
High precision Frequency Counter
Standard interfaces: USB Device, USB Host, LAN (VXI-11), and GPIB (optional)
4.3” touchscreen display for easier operation
