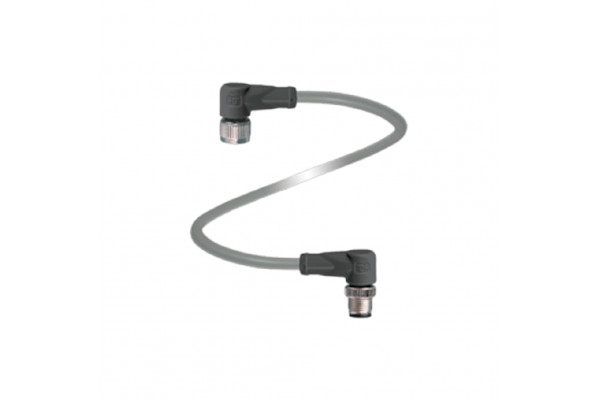

Cabo M12 4 Pinos Pepperl Fuchs V1-W-5M-PVC-V1-W 5 Metros

Cabo M12 4 Pinos Pepperl Fuchs V1-W-5M-PVC-V1-W 5 Metros

Marca: Pepperl Fuchs

Modelo: V1-W-5M-PVC-V1-W

Referência: 240930

Descrição do Produto

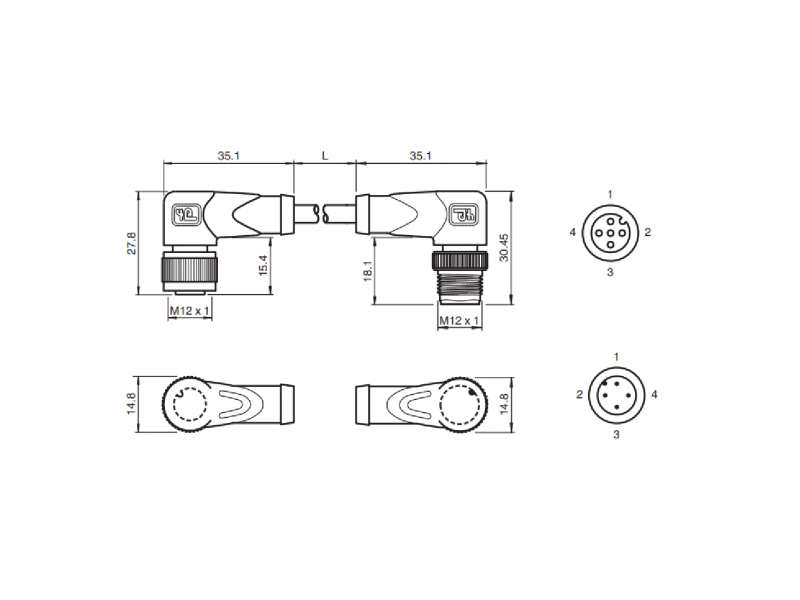

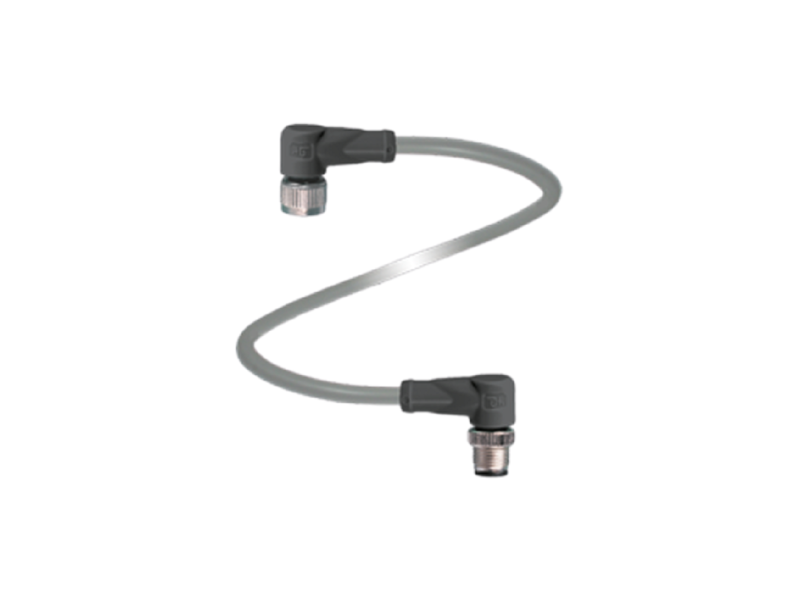

Cordset M12 socket angled to M12 plug angled A-coded, 4-pin, PVC cable grey

General specifications

Connector 1

Connection socket

Construction type M12

Style angled

Locking screw connection

Number of pins 4

Coding A-coded

Connector 2

Connection plug

Construction type M12

Style angled

Locking screw connection

Number of pins 4

Coding A-coded

Electrical specifications

Operating voltage max. 250 V AC/DC

Operating current max. 4 A

Conformity

Degree of protection EN 60529

Plug connection connector M12 x 1 : IEC 61076-2-101

Flammability IEC 60332-2-2

Ambient conditions

Ambient temperature

Plug connector -40 ... 90 °C (-40 ... 194 °F)

Cable, fixed -25 ... 70 °C (-13 ... 158 °F)

Cable, flexing -5 ... 70 °C (23 ... 158 °F)

Pollution degree 3

Mechanical specifications

Plug connector

Tightening torque 0.6 Nm

Loosening protection available

Tool installation straight knurling

Mating cycles min. 100

Degree of protection IP67 / IP68 / IP69

Cable according to IEC/EN 60228 (DIN VDE 0295) class 5

Sheath diameter 4.8 mm

Bending radius > 10 x cable diameter, moving

Sheath stripping force max. 80 N / 300 mm

Sheath color grey (similar to RAL 7001)

Number of cores 4

Core cross-section 0.34 mm2

Cores color Core 1: brown

Core 2: white

Core 3: blue

Core 4: black

Core construction 19 x 0.15 mm ∅

Length 5 m

Cable code Li Y YM 4 x 0,34

Material

Plug connector

Screw connection Zinc diecast, nickel-plated

Body TPU, black

Contact surface Au

Flammability V-2

Cable

Sheathing PVC

Core insulation PVC

Flammability flame-resistant
