Monóculo Térmico Profissional Militar Hikmicro Lynks LC06

HikMicro LC06 handheld thermal monocular camera is equipped with a 160 × 120 infrared detector and a 720 × 540 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.

Key Features

● High sensitivity thermal module with 160 x 120 resolution

● NETD < 35 mK (@25 ° C F#=1.1)

● Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR

● 720 × 540 resolution 0.2-inch LCOS display

● Built-in rechargeable lithium battery

● Up to 10 hours continuous operation

● Wi-Fi hot spot

● Type-C Interface

Specification

Thermal Module

Image Sensor VOx Uncooled Focal Plane Arrays

Resolution 160 × 120

Frame Frequency 50 Hz

Pixel Interval 17 μm

Response Waveband 8 μm to 14 μm

NETD Less than 35 mK (@25°C),F#=1.1

Focal Length 6.2 mm

IFOV 2.74 mrad

Field of View 24.7° × 18.7° (H × V)

Aperture F1.1

Image Display

Monitor 0.2 inch, LCOS, 720 × 540

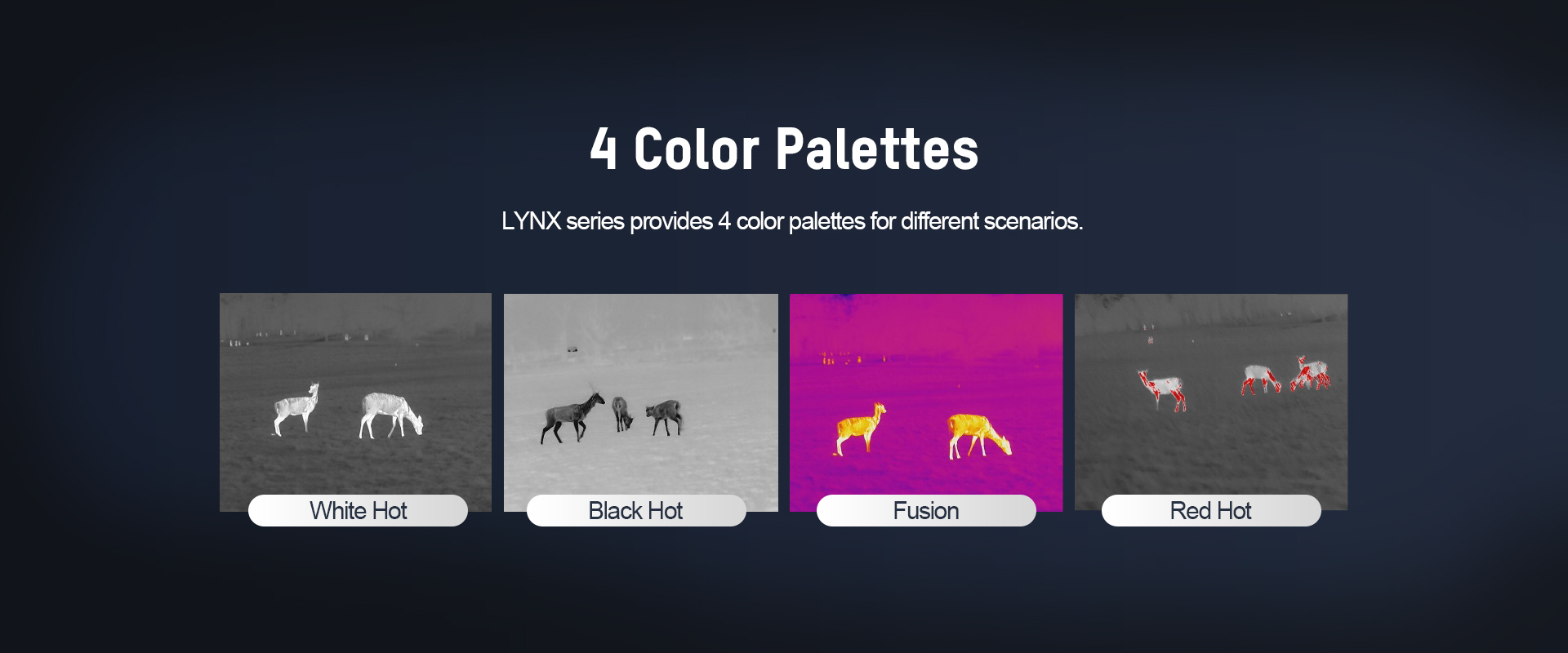

Palettes Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction) Mode Auto, Manual, External Correction

Digital Zoom 1 ×, 2 ×, 4 ×

Smart Function

Hot Track Yes

Detection Range 219 m

System

Storage Built-in memory module (8 GB)

Record Video Yes

Capture Snapshot Yes

Wi-Fi Yes

Standby Mode Yes

Power Supply

Battery Type Rechargeable Lithium Battery

Battery Operating Time

10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C)

7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)

Battery Capacity Display Yes

General

Power 5 VDC/2 A, 1.5 W, Type-C Interface

Work Temperature/Humidity From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less

Protection Level IP67

Dimension 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")

Weight 250 g (0.55 lb)

Baixe aqui as Especificações Completas
