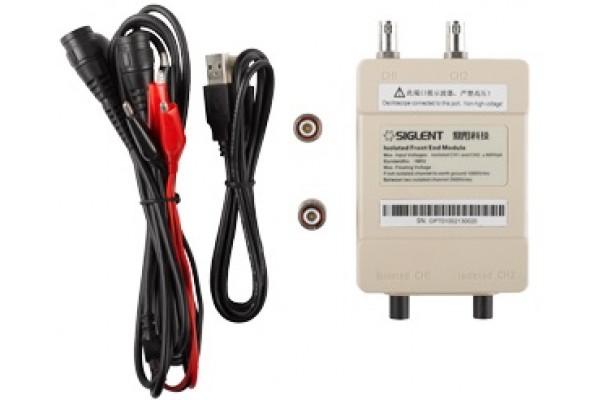

Adaptador de Isolamento Frontal Siglent ISFE

Adaptador de Isolamento Frontal Siglent ISFE

Description

Provides two channels of optically isolated inputs for use with oscillscopes and other applications requiring an isolated ground.

Applications:

- A accessory for oscilloscope, plug and play

- Less than 1W power dissipation, USB power supply

- 1000Vrms form each channel to earth gound, 2000Vrms between channels

- Providing isolation from ground and isolation between channels allowing you to take floating measurements

Specifications:

MAX. Input Voltage: ±600Vpk

Voltage Rating: 5V±5%

Current Rating: 200mA

Output Voltage: -3Vpk~3Vpk

Attenuant Fator: 200:1

Max Voltage form Channl to Earth Gound: 1000Vrms

Max Voltage Between Channels: 2000Vrms

Input Impedance：9MΩ

Bandwidth：≤1MHz

Additional information

Weight: 3 lbs

Dimensions: 12 × 12 × 4 in
