Antenas de Teste para Medição de Campo Próximo Siglent SFR5030
Modelo: SFR5030
Fale conosco e solicite uma cotação
+55 83 98795-5450
+55 83 98795-5450
Modelo: SFR5030
Description

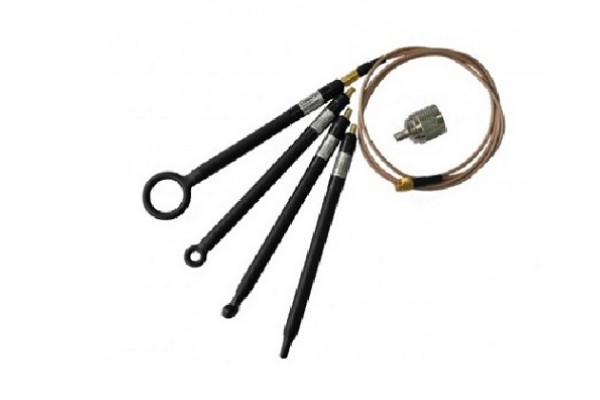

Set includes four H-Field near-field probes with cable and adapter in a carrying case. Used in troubleshooting for EMI/RFI issues, leakages.
Can be used for EMI testing & troubleshooting with the Siglent SSA3000X family of spectrum analyzers.
Specifications:
| Frequency Range | 30 MHz to 3 GHz | 30 MHz to 3 GHz | 30 MHz to 2 GHz | 30 MHz to 3 GHz |
| Resolution | 25mm | 10mm | 5mm | 2mm |
| Application | It can be used at a distance of up to 10 cm from the units. The probe detects the spatial distribution of HF magnetic fields in devices and assemblies and allows the user to draw conclusions with regard to disturbance emissions. | It is suitable for measurements up to 3 cm. Interference sources can be
localized by detecting the distribution and orientation of the field,
therefore enabling a more exact use of higher resolution probes. | It is suitable for measurements up to 3 cm. Interference sources can be
localized by detecting the distribution and orientation of the field,
therefore enabling a more exact use of higher resolution probes. | It is designed for the detection of magnetic fields which are emitted
vertically from the surface of PCBs and is thus ideal for investigating
current loops. The probe allows the measurement in confined board areas
(between large controller components, for example - resolution approx. 2
mm). |
Additional information
Weight: 4 lbs
Dimensions: 12 × 12 × 4 in
