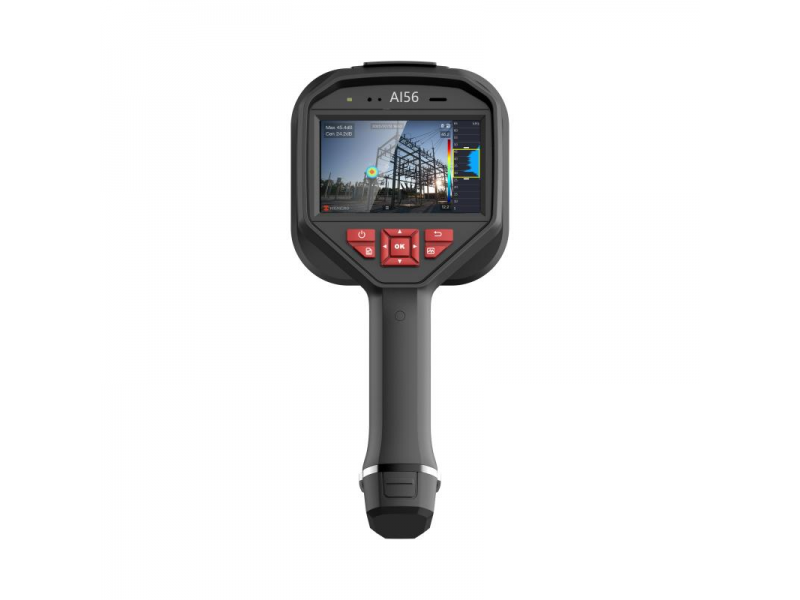

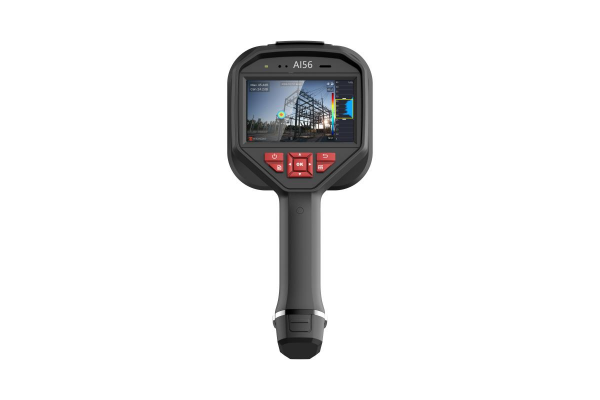

Câmera de Detecção Industrial para Vazamento de Gás Hikmicro AI56

Name: Câmera de Detecção Industrial para Vazamento de Gás Hikmicro AI56
Brand: HikMicro
Availability: InStock

Preço sob
consulta

Quantidade

Especificações:

Acoustic
Number of Microphones	64
Bandwidth	2kHz~65kHz
Distance	0.3m~100m
Camera FOV	51.8°× 36.4°
Sound Intensity Display	Peak Point, Center Point
Acoustic Image Frame Rate	25 fps
Signal Noise Ratio	70dB
Acoustic Image Resolution	800 × 480
Acoustic Image Palette	8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red
Leak Rate	>0.008 l/min @ 6 bar from 0.5 m (1.64 ft) >0.013 l/min @ 5 bar from 1 m (3.28 ft)

Image Display
Display	800 × 480 Resolution, 4.3’LCD Touch Screen
Screen Brightness	Manual/Auto
Digital Zoom	1.0x to 8.0x continuous

Data Storage and Communication
Storage Media	Removable 64 GB SD Card
Image Storage Capacity	20,000 images
Annotations	Voice note: max. 60 seconds; Text note: max. 200 characters
Video Storage Capacity	60 hours
Video File Format	MP4

General
Wi-Fi	802.11 b/g/n (2.4 GHz and 5 GHz)
USB Interface	USB Type-C
HDMI Interface	HDMI-D
Battery Type	Dismountable and Rechargeable Li-ion Battery
Battery Operating Time	Approx. 3.5 hours
Battery Charging Time	5 hours to full charge
Protection level	IP40
Drop Test Height	1.2 m (3.94 ft)
Safety	IEC 61010-1
EMC	EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3
Working Temperature Range	-20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature Range	-20 °C to 60 °C (-4 °F to 140 °F)
Relative Humidity	＜95 % non-condensing
Weight	Approx. 940 g (2.07 lb)
Dimension	292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in)
Tripod Mounting	UNC ¼”-20
Power Supply	5V DC/2A (Charging via USB)
