A Vector Network Analyzer (VNA) is an electrical test instrument that uses a known Continuous Wave (CW) signal to measure the magnitude and phase response of Radio Frequency (RF) and microwave components, systems, and sub-systems in both design and manufacturing applications.
It is an important test instrument that helps make wireless devices possible.

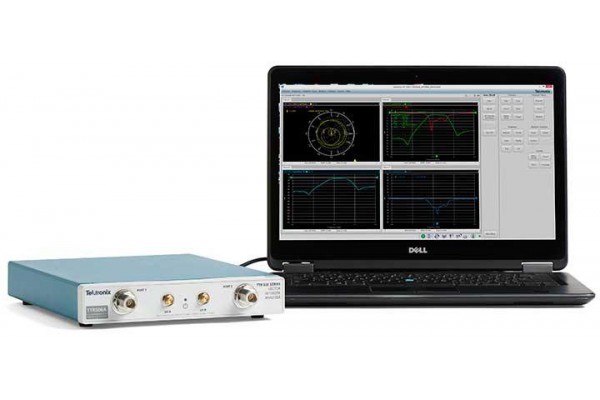

The Tektronix TTR500 Series 2-port, 2-path vector network analyzer gives RF design and validation engineers, education professionals, and manufacturing organizations the ability to accelerate their time-to-market by reducing prototype iterations and making everyday measurements with accuracy and confidence.
|Model||Frequency Range||Ports||Dynamic Range|
|TTR503A||100 KHz - 3 GHz||Two ports, type-N female connectors||>122 dB|
|TTR506A||100 KHz - 6 GHz||Two ports, type-N female connectors||>122 dB|
