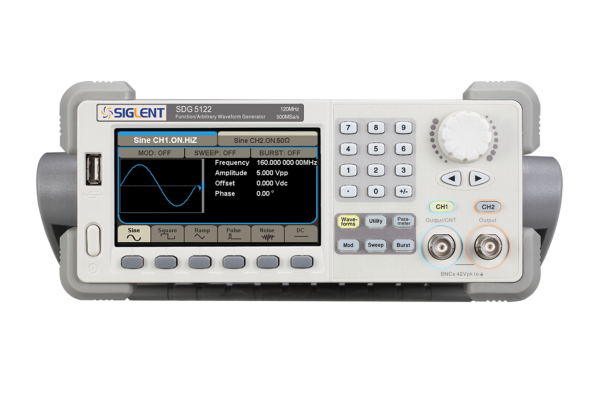

Gerador de Funções Arbitrárias Siglent Série SDG5000

Modelo: SDG5000

Principais recursos SIGLENT’s SDG5000 is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 160 MHz bandwidth, a maximum sample rate of 500 MSa/s and 14-bit vertical resolution. They also include proprietary EasyPulse technology for improved pul

Comprar

Informações gerais sobre o produto Especificações Manuais + recursos

O SDG5000 da SIGLENT é uma série de geradores de formas de onda de pulso arbitrárias de canal duplo que apresentam largura de banda de até 160 MHz, uma taxa de amostragem máxima de 500 MSa / se resolução vertical de 14 bits. Eles também incluem a tecnologia exclusiva EasyPulse para formas de onda pulsadas aprimoradas.

In addition, the SDG5000 also has independently isolated outputs that can be floated up to 42 Vpk from chassis ground. These features enable the SDG5000 to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

    Up to 160 MHz Output Frequency
    500 MSa/S Sampling Rate
    14-bit Vertical Resolution
    Modulation functions include: AM, DS-AM, FM, FSK, ASK, PWM, linear/log sweeping, and burst
    2 Isolated/Floating Outputs
    Hardware frequency counter

Models
SDG5162: Max Output Frequency of 160 MHz, Max Sampling Rate of 500 MSa/s, 14-bit Vertical Resolution, Waveform Lenght of CH1: 16 kpts, CH2: 512 kpts; 2ch
SDG5122: Max Output Frequency of 120 MHz, Max Sampling Rate of 500 MSa/s, 14-bit Vertical Resolution, Waveform Lenght of CH1: 16 kpts, CH2: 512 kpts; 2ch
SDG5082: Max Output Frequency of 80 MHz, Max Sampling Rate of 500 MSa/s, 14-bit Vertical Resolution, Waveform Lenght of CH1: 16 kpts, CH2: 512 kpts; 2ch

Key Features

    Memory depths of 512 kpts for CH2 and 16 kpts for CH1
    Dual Isolated/Floating Output Channels (+/- 42 Vpk from chassis ground)
    EasyPulse Technology
    2 ppm frequency stability
    -116 dBc/Hz phase noise
    Adjustable rising/falling edges and pulse control
    Standard interface includes USB
    Free EasyWave arbitrary waveform editing software
    4.3″ LCD (480*272 pixels)

Gerador de Funções, gerador de ondas Arbitrárias, gerador de funções arbitrárias, Siglent, Série SDG5000, gerador de Funções Arbitrárias Siglent Série SDG5000

Gerador de Funções Arbitrárias Siglent Série SDG5000

In addition, the SDG5000 also has independently isolated outputs that can be floated up to 42 Vpk from chassis ground. These features enable the SDG5000 to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.
