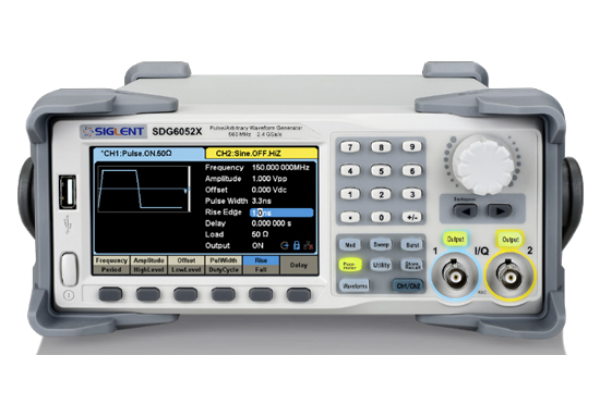

Gerador de Pulsos e Funções Arbitrárias Siglent Série SDG6000X

O SDG6000X da SIGLENT é uma série de geradores de formas de onda de pulso arbitrárias de canal duplo que apresentam largura de banda de até 500MHz, uma taxa de amostragem máxima de 2,4 GSa/s e resolução vertical de 16 bits. Eles também incluem a tecnologia exclusiva TrueArb & EasyPulse, que ajuda a resolver os pontos fracos inerentes aos geradores DDS tradicionais ao gerar formas de onda arbitrárias, quadradas e de pulso.

In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.


    Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
    High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
    EasyPulse circuit lowers jitter and increases pulsed performance
    Create baseband and IF IQ modulated waveforms (optional)

Models
SDG6022X: Max Output Frequency of 200 MHz, Max Sampling Rate of 2.4 GSa/s, 16-bit Vertical Resolution, Waveform Lenght of 20 Mpts, 2ch
SDG6032X: Max Output Frequency of 350 MHz, Max Sampling Rate of 2.4 GSa/s, 16-bit Vertical Resolution, Waveform Lenght of 20 Mpts, 2ch
SDG6052X: Max Output Frequency of 500 MHz, Max Sampling Rate of 2.4 GSa/s, 16-bit Vertical Resolution, Waveform Lenght of 20 Mpts, 2ch

Key Features

    Sweep and Burst function
    Harmonics function
    Waveform Combining function
    Channel Coupling, Copy and Tracking function
    196 built-in arbitrary waveforms
    High precision Frequency Counter
    Base Band and IF IQ signals supporting
    basic modulation and an arbitrary symbol
    rate between 250 Symb/s to 37.5 MSymb/s (optional)
    Standard interfaces include: USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet). GPIB Optional (Part number USB-GPIB)
    4.3” touchscreen display for easier operation
