A família de geradores de função de forma de onda arbitrária da série SDG800 gera funções de forma de onda de até 5 MHz (pulso), 10 MHz (quadrado), 30 MHz (senoidal) e tem uma taxa de amostragem de 125 MSa/s.
They are powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.
Advanced DDS technology, 125 MSa/s sampling rate, 14-bit vertical resolution
Single channel output, 5 standard waveforms, 46 built-in arbitrary waveforms (including DC)
Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep, and burst

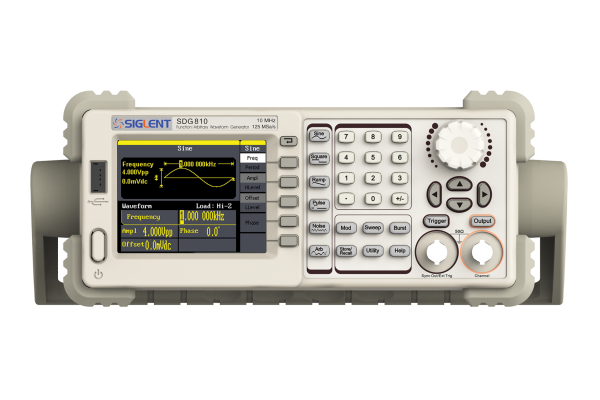

- SDG810: Max Output Frequency of 10 MHz
- Max Sampling Rate of 125 MSa/s
- 14-bit Vertical Resolution
- Waveform Lenght of 16 kpts
- 1 channel
Key Features
Innovative EasyPulse technology, can output pulses with low jitter and quick rising/falling edges
Standard interfaces: USB Device, USB Host, supports U-Disk storage
10 nonvolatile storage spaces for user’s arbitrary waveforms
Can be seamlessly connected to SIGLENT Digital Storage Oscilloscope
Includes EasyWave, the powerful arbitrary waveform editing software
