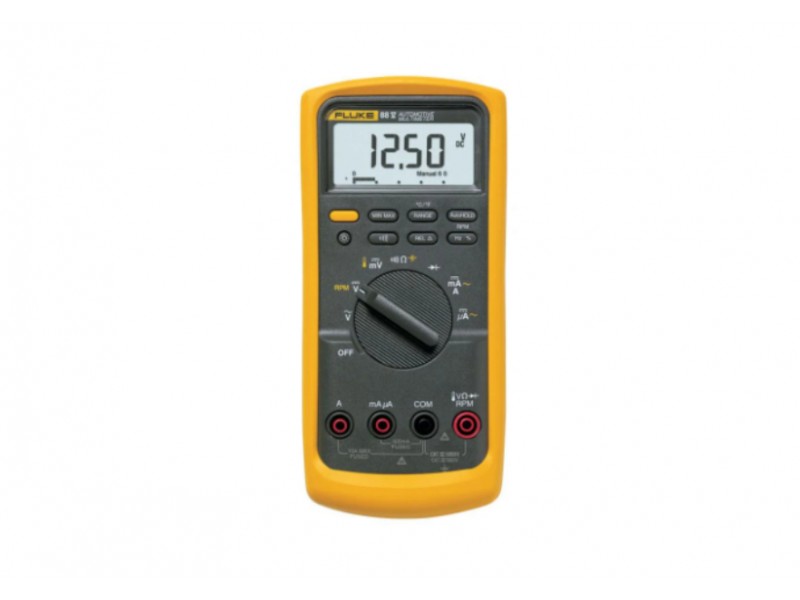

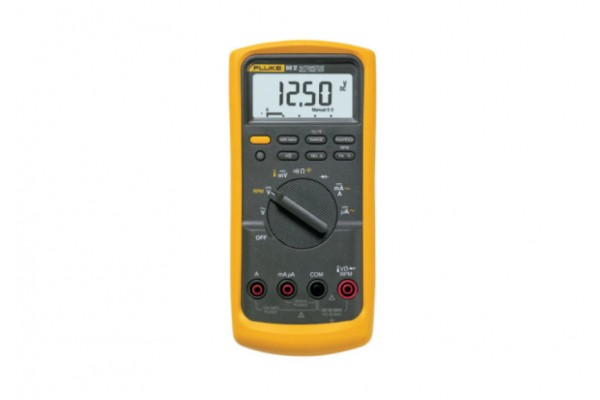

Multímetro Automotivo Fluke 88V Deluxe

The Fluke 88V has improved measurement functions, trouble-shooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is the most powerful automotive multimeter ever offered by Fluke. In addition to having all standard multimeter features like the ability to measure voltage, current, continuity, and resistance, the 88V can perform diode test and pulse width measurements.

This meter can take current measurements up to 20 A for 30 seconds and 10 A continuously. The optional magnetic hanger lets you attach the meter to most steel surfaces for easy set-up and viewing. The 88V is designed to be used in high energy environments like those found on hybrid vehicles.

Measures

• Resistance, continuity and diode test

• Millisecond pulse width measurements for fuel injectors
• Frequency to 200 kHz and % duty cycle
• Measure up to 1000 V AC and DC
• Measure current up to 10 A, 20 A for up to 30 seconds
• 4 ½ digits for precise measurements
• RPM measurements with optional inductive pickup
• Temperature measurements with optional temperature probe

Technical Specifications

DCV

• Maximum voltage: 1000 V
• Accuracy:±(0.1% + 1)
• Best resolution: 0.01 mV

ACV

• Maximum voltage: 1000 V
• Accuracy: ±(0.5% + 2)
• AC Bandwidth: 5 kHz
• Best Resolution: 0.01 mV

DC Current

• Maximum amps: 10 A
• Amps accuracy: ±(0.4 % + 2)
• Best resolution: 0.001 mA

AC Current

• Maximum amps: 10 A
• Amps accuracy: ±(1.2% + 2)
• Best resolution: 0.001 mA

Resistance

• Maximum resistance: 50 MΩ
• Accuracy: ±(0.4% + 1)
• Best resolution: 0.1 Ω

Capacitance

• Maximum capacitance: 9,999 µF
• Accuracy: ±(1% + 2)
• Best resolution: 0.01 nF

Frequency

• Maximum frequency 200 KHz
• Accuracy ±(0.005% + 1)
• Best resolution 0.01 Hz

Duty cycle

• Maximum duty cycle 99.9%
• Accuracy within 2% per KHz + 0.1%
• Best resolution 0.1%

Temperature measurement: -200.0°C – 1090°C (-328.0°F – 1994.0°F, 1.0% excluding probe

80 BK temperature probe: -40 °C – 260°C (-40 °F – 500°F), 2.2°C or 2% whichever is greater

Conductance

• Maximum conductance; 60.00 nS
• Accuracy: ±(1.0% + 10)
• Maximum resolution:0.01 nS

Operating range

• Operating temperature: -20°C – 55°C
• Storage temperature: -40°C – 60°C

Physical: 5.2 x 9.8x 20.1 cm (2.06 x 3.86 x 7.93 in), 624 g (22 oz.)
