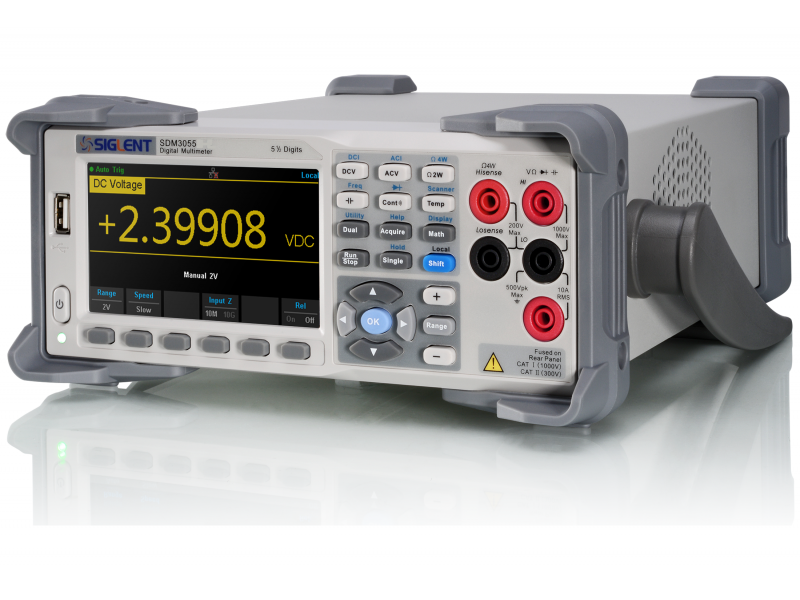

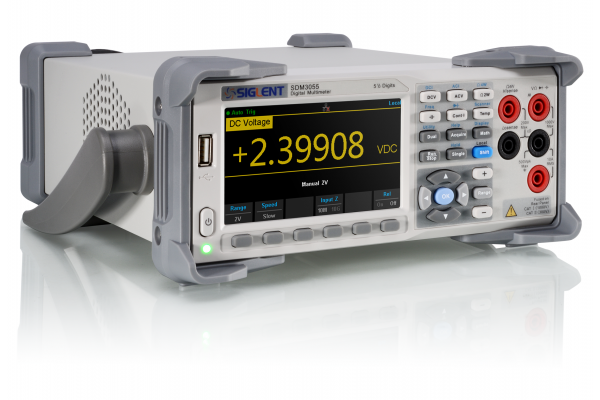

Multimetro de Bancada Siglent SDM3055X (5 1/2 Digitos)

O SDM3055/SDM3055-SC é um multímetro digital projetado com resolução de leituras de 5 ½ dígitos e tela dupla, adaptando-se especialmente às necessidades de alta precisão, medição multifuncional e automática.

The SIGLENT SDM3055X-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple
measurement points or signals and is an ideal tool for R&D burn-in and production testing.

NOTE: The scanner is included on new SDM3055X-SC products only. It cannot be added to SDM3055X instruments at a later time.

    Real 5½ digits readings resolution ( 240, 000 counts )
    Up to 150 rdgs/s measurement speed
    True-RMS AC Voltage and AC Current measuring
    1 Gb Nand flash size, Mass storage configuration files and data files
    Optional Scanner for multipoint measurements (-SC part number)

Models
SDM3055: 5 1/2 digits, DCV accuracy of 0.015% of reading + 0.003% of range, DCV range of 200 mVDC - 1000 VDC, ACV range of 200 mVAC - 750 VAC, DC current range of 200 µADC - 10 ADC, Without Scanner Module
SDM3055-SC: 5 1/2 digits, DCV accuracy of 0.015% of reading + 0.003% of range, DCV range of 200 mVDC - 1000 VDC, ACV range of 200 mVAC - 750 VAC, DC current range of 200 µADC - 10 ADC, With Scanner Module

Key Features

    Built-in cold terminal compensation for thermocouple temperature measurements
    With easy, convenient and flexible PC software: EasyDMM
    Standard interfaces: USB Host, LAN ( Optional Accessories USB-GPIB Adapter )
    Support remote control operation via SCPI commands. Compatible with commands of main stream multimeters
