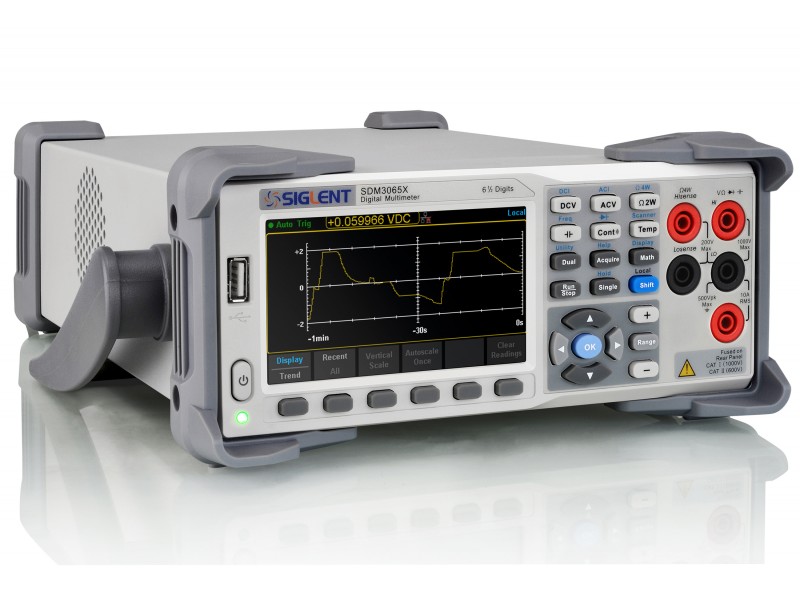

Multimetro de Bancada Siglent SDM3065X (6 1/2 Digitos)

O SDM3065X é um DMM de 6 ½ dígitos (multímetro digital com 2.200.000 contagens) incorporado um monitor duplo. A série SDM3065X é especialmente adequada para as necessidades de medição de aplicações de alta e alta precisão.

The SIGLENT SDM3065X-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner

features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

NOTE: The scanner is included on new SDM3065X-SC products only. It cannot be added to SDM3065X instruments at a later time.


    Real  6½ digits readings resolution (2,200,000 counts)
    1 Gb Nand flash size, Mass storage configuration files and data files
    True-RMS AC Voltage and AC Current measuring
    Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter)
    Optional Scanner for multipoint measurements (-SC part number)


Models
SDM3065X     6 1/2     0.0035% of reading + 0.0006% of range     200 mV-1000 V     200 mV-750 V     200 µA-10 A     Without Scanner Card
SDM3065X-SC     6 1/2     0.0035% of reading + 0.0006% of range     200 mV-1000 V     200 mV-750 V     200 µA-10 A     With Scanner Card


Key Features

    - Supports double display, Chinese and English Menu
    - File management (support for U-disc and local storage)
    - Built-in cold terminal compensation for thermocouple
    - Comes with easy, convenient and flexible any sensor measurement control software :EasyDMM
   - Math Function: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter,etc.
