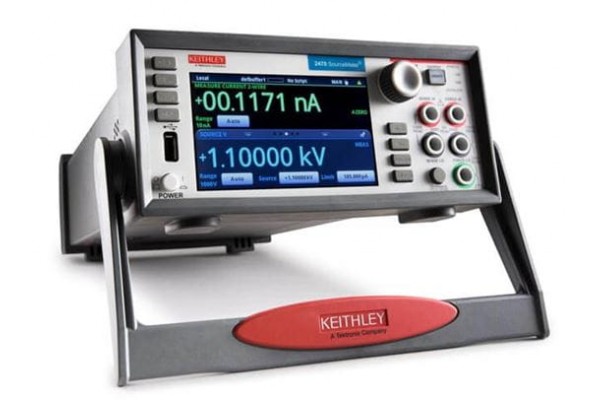

SMU Keithley Série Gráfica 2400

Keithley 2400 Graphical Series SMU instruments offer four-quadrant precision voltage and current source/load coupled with measurement now on an intuitive touchscreen user interface.

These instruments can simultaneously source and measure current from 10 fA to 10 A pulse and/or voltage from 100 nV to 1100 V for 1000 W pulse and 100 W DC total power, allowing users to Touch, Test, Invent

A modern curve tracer solution

Install I-V Tracer Software to your 2400 Series Graphical SMU and create a functional replacement to traditional curve tracers like the Tektronix 576 or 370. Quickly trace out two-terminal device characteristics without configuring sweeps or connecting to other software.

Making the big power switch

Demand for more efficient high-voltage semiconductors in 5G, automotive, and alternative energy markets is driving increasingly complex testing and research into new technologies like SiC and GaN. Your testing equipment will need to evolve to keep up.

The new 2470 SMU adds capabilities in measurements like breakdown voltage, leakage current, isolation testing, hi-pot and dielectric withstanding tests to get you to insight faster.

Make measurements at a whole new level

SMU instruments capture more-detailed device behavior and can characterize the device in extended ranges, so you can understand your device better, enhance its quality and improve its performance.

Highlights

• 6½-digit resolution precision source and measure
• 1 MSamples/s digitized measurement speed
• Current: 10 nA to 7 A DC, 10 A Pulse
• Voltage: 200 mV to 200 V
• Power: Up to 100 W DC to 1000 W Pulse




Baixe Aqui a Datshhet do produto
