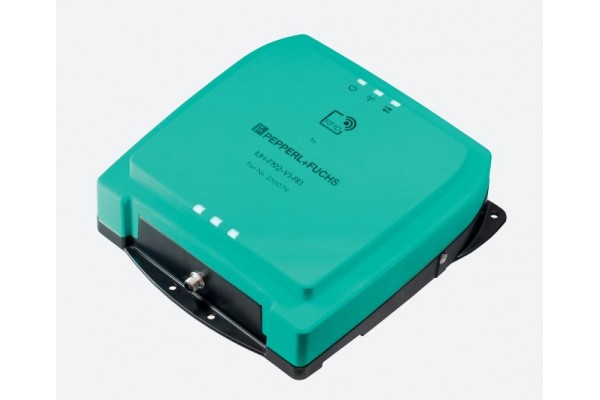

Antena RFID Industrial UHF Pepperl-Fuchs IDENTControl IUH-F192-V1-FR2

Modelo IUH-F192-V1-FR2 - Leitor RFID IDENTControl em UHF, modelos para Ásia e América Latina (exceto México) - Certificado pela Anatel.

IDENTControl é uma linha completa de produtos que inclui: interfaces IDENTControl, uma ampla variedade de antenas de leitura/escrita e tags para qualquer tipo de aplicação e ambiente. Nossas antenas de leitura/escrita podem ser conectadas a esses controladores. Módulos com 1, 2 e 4 canais estão disponíveis com possibilidade de comunicação com qualquer PLC através dos principais protocolos de rede aplicados na indústria.

Antenas de Leitura/Escrita RFID

Cada aplicação requer um modelo específico de antena de leitura/escrita RFID. Para aplicações de RFID otimizadas nós oferecemos componentes de alta performance em LF, HF e UHF. Versões especiais para as indústrias de processos e alimentos também estão disponíveis.

As antenas de leitura/registro de RFID estão disponíveis em componentes de campo próximo e afastado. Elas são controladas por unidades de controle, códigos de leitura e somente leitura, e áreas de dados variáveis de etiquetas de RFID. Elas também podem ser registradas em áreas de dados.

As antenas de leitura/registro de RFID da Pepperl+Fuchs são fáceis de integrar, como, por exemplo, um cilindro fino com uma rosca externa em um invólucro plano ou compacto.

Para RFID em campo próximo (indutivo de 125 kHz e 13,56 MHz), as distâncias de leitura/registro ficam no intervalo de um a dois centímetros; Para RFID em campo afastado (868 MHz), as distâncias de leitura/registro alcançam, no máximo, seis metros.

Features

- Flexible UHF read/write head with long range for use worldwide

- Ready-made PLC function blocks designed for quick and easy system integration

- Compact and robust housing for harsh industrial environments

- Switchable antenna polarization guarantees reliable tag detection and enhances process flow

- For connection to IDENTControl control interface

- Multi-tag reading increases productivity

Model Function

The IUH-F192-V1-FR2 read/write head operates in the UHF frequency range and is optimized for use in industrial applications involving greater distances. The device reads and writes passive tags according to EPC Generation 2 (ISO/IEC 18000-63). The read/write head can be operated in different countries, e.g. China. The read/write head complies with the respective radio regulations.

Wide range of options supported for filtering data. The read/write head is connected to the IDENTControl interface using an M12 connector. The user can monitor the status of the read/write head using the integrated LEDs.

The read/write head has a typical detection range of approx. 3 meters; this range is determined by the tag used and can be changed by adjusting the transmission power. Other influencing factors are the application specific setup and surrounding materials, particularly metal. The read and write distances measured under ideal conditions can be found in a separate document. For the actual read and write distances under real conditions, the combination of read/write head and tag must be tested in the intended application.

Technical Data

General specifications

Operating frequency 915.0 MHz … 928.0 MHz (Brazil)

Emitted power 10 ... 4000 mW EIRP = 6 ... 2400 mW ERP adjustable

Operating distance typ. 4 m

Functional safety related parameters - MTTFd 128 a

Indicators/operating means

LED green Power on

LED yellow Read/write operation successful

LED blue Transmission mode

Electrical specifications

Power consumption P0 ≤ 10 W

Supply from the IDENTControl

Standard conformity

Electromagnetic compatibility EN 301489-1, EN 301489-3

Degree of protection EN 60529

Safety EN 62368-1

RFID ISO/IEC 18000-63

Approvals and certificates

UL approval UL 61010-1 3rd Edition

CSA C22.2 NO. 61010-1-12 3rd Edition

(EN 60950-, EN 60529 and IP67 are not included)

Radio approval (Brazil): ANATEL 2940-16-6150

Ambient conditions

Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Degree of protection IP67

Connection connector M12 x 1

Material

Housing PA 6

Base diecast aluminum

Mass approx. 3000 g

Accessories

IC-KP-B17-AIDA1 - IDENTControl control interface with Ethernet interface for TCP/IP, PROFINET, EtherNet/IP, and MODBUS TCP protocols

IC-KP2-2HRX-2V1 - Control interface unit IDENTControl Compactwith serial interface RS-232 and RS-485

IC-KP2-2HB6-V15B - Control interface unit IDENTControl Compact with interface for PROFIBUS DP

IC-KP2-2HB17-2V1D - IDENTControl Compact control interface with Ethernet interface for TCP/IP, PROFINET, EtherNet/IP, and MODBUS TCP protocols

IC-KP2-2HB21-2V1D - Control interface unit IDENTControl Compact with EtherCAT interface

IUC76-34-M-FR2 - Data carrier

IUC76-50-FR2 - Data carrier

IUC76-F157-T17-M-FR2 - Data carrier for standard applications

IUC76-F157-T18-M-FR2 - Data carrier for paint shop applications

IUC76-F157-T19-M-FR2 - Data carrier for autoclave applications

IUC76-28L90-M-FR2 - 25pcs, Data carrier

IUC77-25L100-GBL - 1000pcs, Data carrier

IUZ-MH13 - Mounting bracket for wall mounting

IUZ-MH15 - Mounting aid for round steel ø 12 mm or sheet 1.5 mm ... 3 mm

V1-G-2M-PUR-ABG-V1-W - Connecting cable, M12 to M12, PUR cable 4-pin, shielded

V1-G-5M-PUR-ABG-V1-W - Connecting cable, M12 to M12, PUR cable 4-pin, shielded

V1-G-10M-PUR-ABGV1-W - Connecting cable, M12 to M12, PUR cable 4-pin, shielded
