Placa, placa de Aquisição de Dados, placa daq, placa Multifuncional, placa daq Universal, Advantech, PCI-1710U-DE, Placa de Aquisição de Dados Advantech PCI-1710U-DE, Placa DAQ Advantech PCI-1710U-DE, 100 kS/s, 12 bits, 16 canais

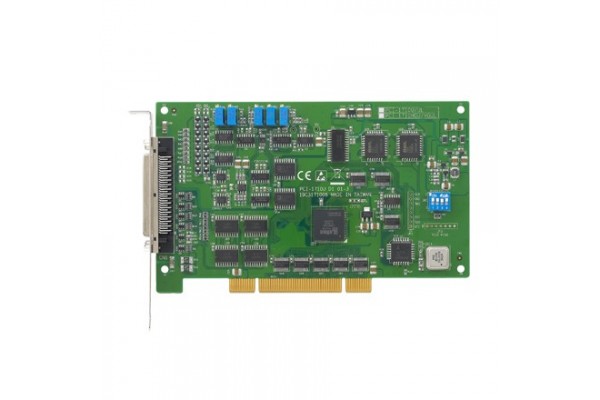

Placa de Aquisição de Dados Multifuncional Universal Advantech PCI-1710U-DE

Modelo: PCI-1710U-DE

Principais recursos The PCI-1710U Series are multifunction cards for the PCI bus. Their advanced circuit design provides higher quality and more functions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input

Comprar

The PCI-1710U Series are multifunction cards for the PCI bus. Their advanced circuit design provides higher quality and more functions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input, digital output, and counter/timer.

PCI-1710U-DE 100 kS/s, 12-bit, 16-ch Universal PCI Multifunction Card
100 kS/s, 12-bit, 16-ch Universal PCI Multifunction Card

    - 16 single-ended or 8 differential or a combination of analog inputs
    - 12-bit A/D converter, with up to 100 kHz sampling rate
    - Programmable gain
    - Automatic channel/gain scanning
    - Onboard FIFO memory (4096 samples)
    - Two 12-bit analog output channels (PCI-1710/1710HG only)
    - 16 digital inputs and 16 digital outputs
    - Onboard programmable counter
    - BoardID™ switch


Datasheet

Manual (Starter)

Manual (Intermediary)

Manual (Advanced)
