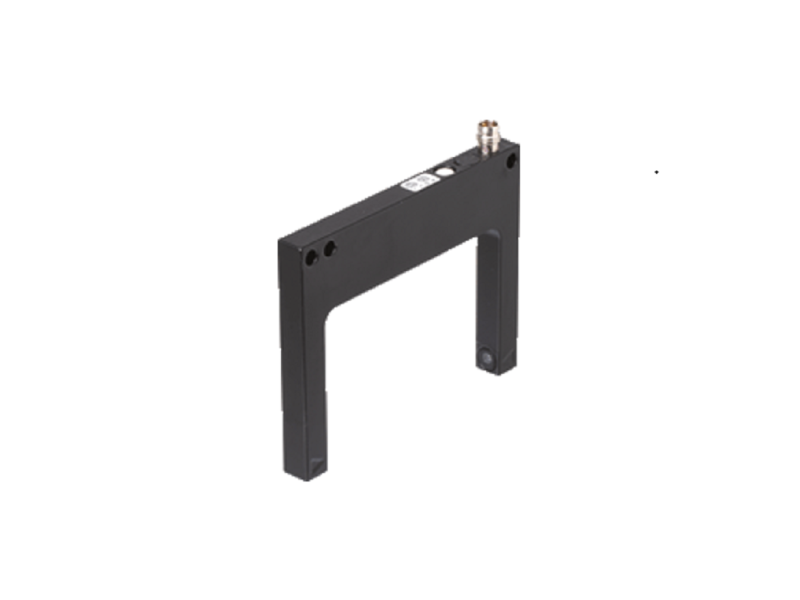

Sensor Fotoelétrico Pepperl Fuchs GL80-IR/32/40a/98a

Sensor Fotoelétrico Pepperl Fuchs GL80-IR/32/40a/98a

Marca: Pepperl Fuchs

Modelo: GL80-IR/32/40a/98a

Referência: 198054

Descrição do Produto

Photoelectric slot sensor, zinc pressure diecast housing, 80 mm slot width, infrared light, light/dark on, sensitivity adjuster, DC version, PNP output, 3 pin M8 plug

General specifications

Light source IRED

Light type modulated infrared light

Tests EN 60947-5-2

Target size 0.3 mm

Slot width 80 mm

Slot depth 55 mm

Ambient light limit 100000 Lux

Functional safety related parameters

MTTFd 1290 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

Function indicator LED red in connector

Control elements Sensitivity adjuster, light/dark switch

Electrical specifications

Operating voltage 10 ... 30 V DC, class 2

Ripple 10 %

No-load supply current ≤ 15 mA

Output

Switching type light/dark on

Signal output 1 PNP, short-circuit protected, open collector

Switching voltage max. 30 V DC

Switching current max. 100 mA

Repeat accuracy 0.05 mm

Switching frequency 2 kHz

Response time ≤ 250 µs

Conformity

Product standard EN 60947-5-2

Approvals and certificates

CE conformity CE

EAC conformity TR CU 020/2011

UL approval cULus

CCC approval CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature -20 ... 60 °C (-4 ... 140 °F)

Storage temperature -20 ... 75 °C (-4 ... 167 °F)

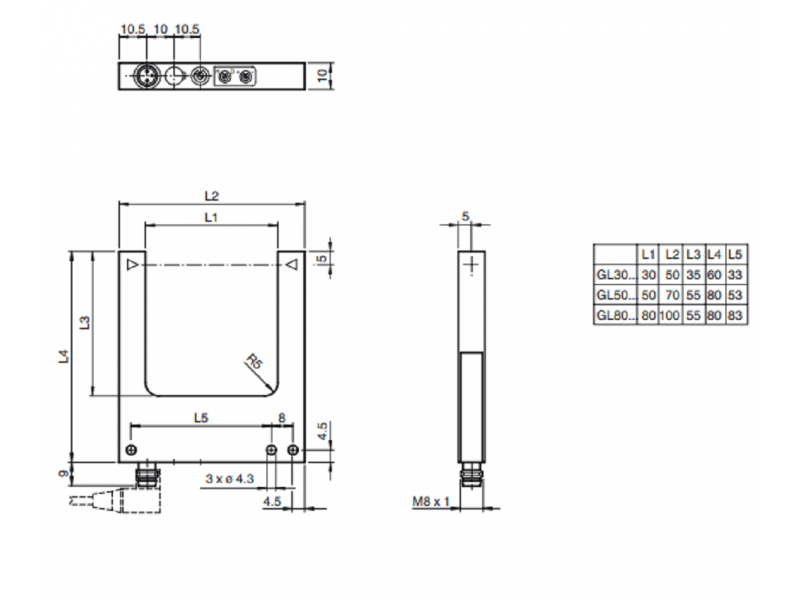

Mechanical specifications

Degree of protection IP67

Connection M8 connector, 3-pin

Material

Housing powder coated diecast zinc

Optical face glass

Mass 125 g
