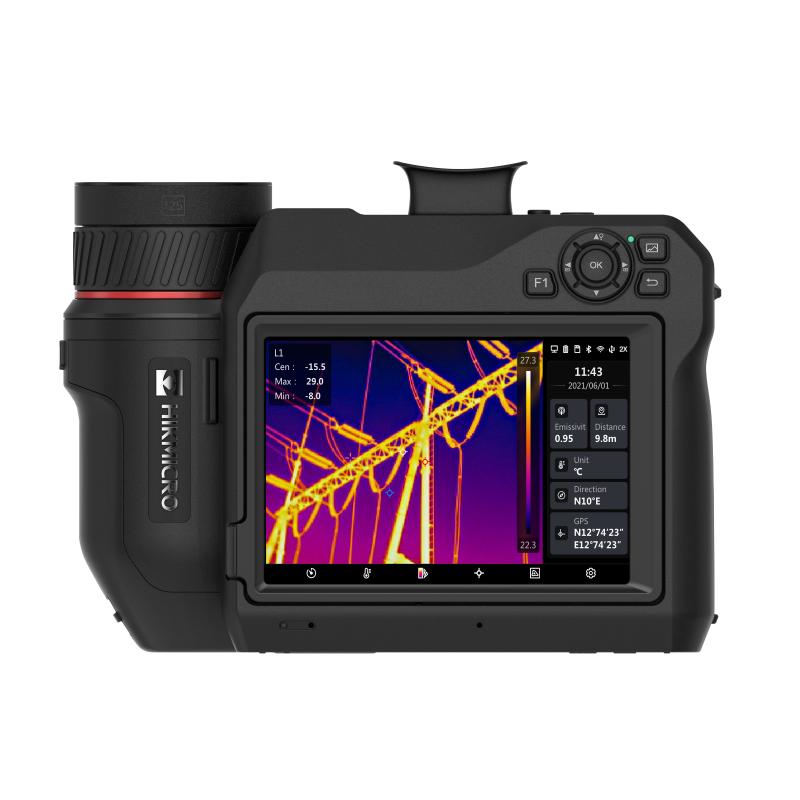

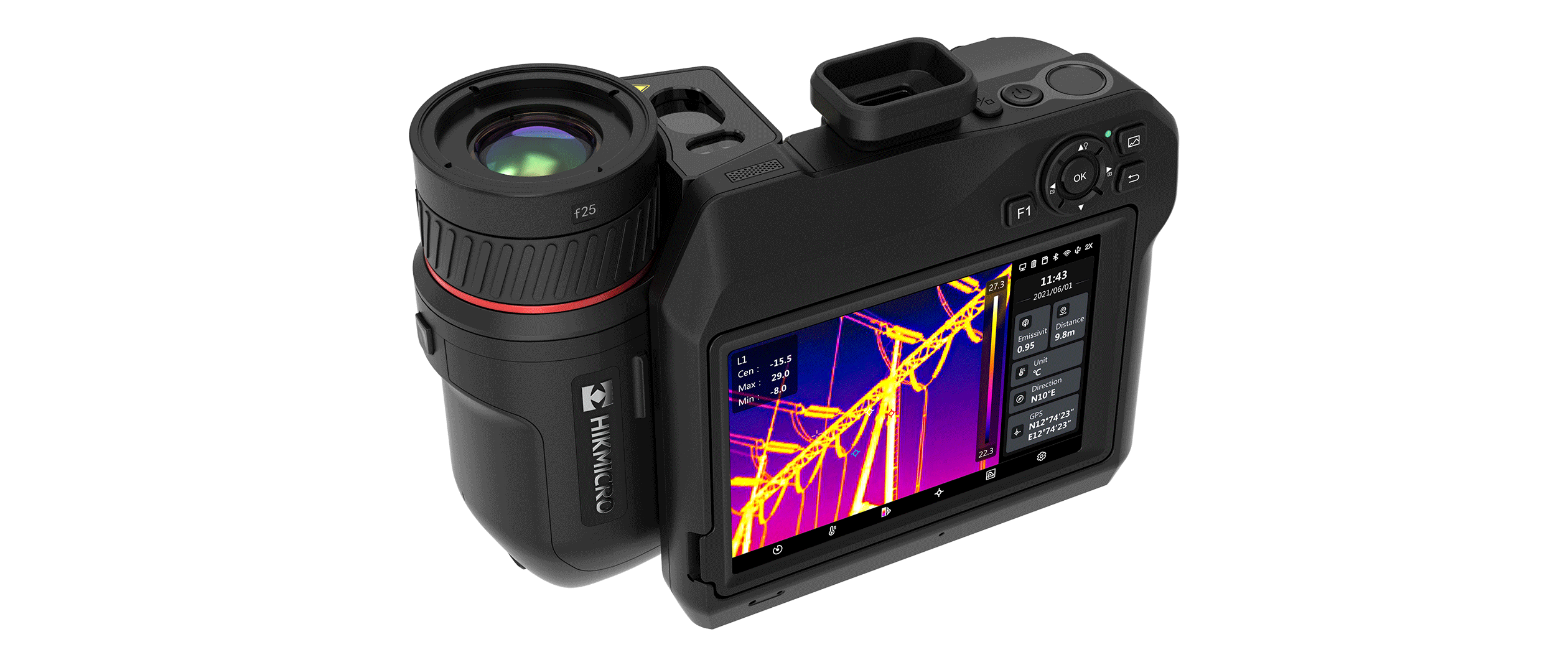

Conheça a Câmera termográfica SP60H da Hikmicro e suas funcionalidades avançadas para diversas aplicações. Com um sensor de alta resolução, detecção de temperatura de -40°C a 550°C e um modo de imagem dual, essa ferramenta é capaz de fornecer informações precisas e detalhadas. Compre agora na Datasonic e aproveite condições de compra competitivas e suporte técnico confiável.
Especificações:
| Infrared Image | |
| IR Resolution | 640 × 480 (307,200 pixels) |
| Super Resolution | 1280 × 960 (1,228,800 pixels) |
| NETD | < 30 mK (@ 25°C, F# = 1.0) |
| Image Frequency | 30 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 25 mm |
| F-number | F1.0 |
| Field of View | 24.8°× 18.7° |
| Spatial Resolution | 0.68 mrad |
| Min. Focus Distance | 0.2 m (0.65 ft) |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus |
| Focus Speed | Approx. 1 second |
| Image Display | |
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 1280 × 720 Resolution, 5”LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Viewfinder | 1024 × 768 pixels OLED |
| Digital Zoom | 1.x to 12.x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval/Insulation |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -40°C to 2200°C (-40°F to 3992°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 1 line, and 3 rectangles. |
| Level and Span Mode | Auto/Manual/1-Tap Touch-Screen |
| Inspection Route | Yes |
| Data Storage and Communication | |
| Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | Approx. 60,000 Images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters |
| Video Storage Capacity | Approx. 64 hours |
| Video File Format | MP4 video and radiometric video |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| LED Light | Yes |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW |
| Laser Distance Meter | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). |
| GPS & Compass | Yes |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Power Saving Mode | Yes |
| Programmable Buttons | two |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Safety | IEC 61010-1 |
| EMC | EN55032, EN50130-4, EN61000-3-3 |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 1590 g (3.51 lb) |
| Dimension | 204.7 × 153.6 × 87.8 mm (8.06” × 6.05” × 3.45”) |
| Tripod Mounting | UNC ¼”-20 |
