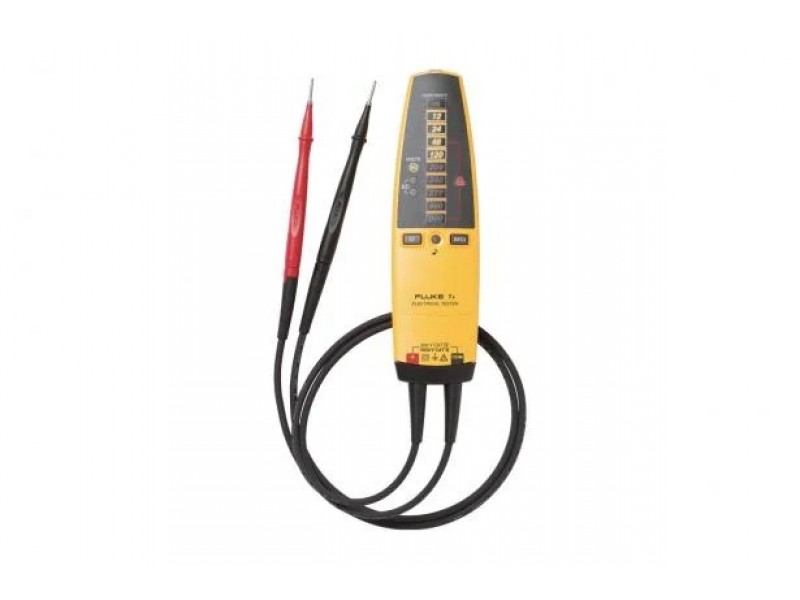

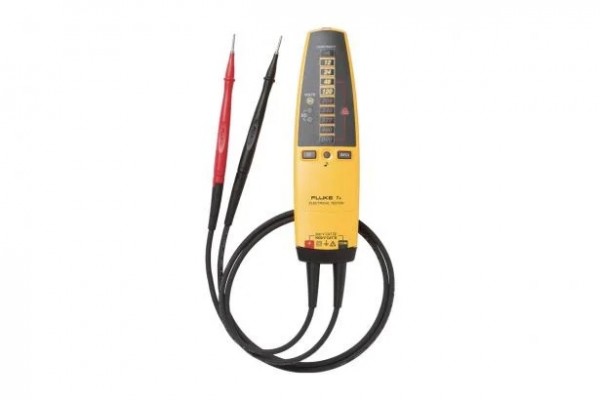

Testador de Tensão Fluke T+

Safer than solenoid testers and fully compliant with NFPA 70E*, the T+ helps electricians and technicians work safer by indicating the presence of voltage even when the batteries are dead due to its solid-state design. Additional functionality such as a GFCI trip and a built-in flashlight make the T+ a versatile tool for any troubleshooting situation.

Detect live voltage even when the batteries are dead

• Not only shows the presence of voltage but indicates the level even when the batteries are dead
• Fully compliant with NFPA 70E*

3 forms of AC/DC voltage indication: light, sound, and vibration for added user protection

• Three voltage indications ensure that the user will be alerted to the presence of voltage even in dark or noisy environments.
• The audible indication can be optionally disabled at the push of a button

GFCI Trip for testing GFCI circuits on outlets

• Test GFCI circuits at the push of a button using the integrated GFCI trip

Key safety features

• Solid-state tester design will detect voltage even when the batteries are dead
• CAT IV 600 V, CAT III 1000 V
• Complies with NFPA 70E*
• CSA Approved

Additional product features

• GFCI trip for testing outlet GFCI circuits
• Built in flashlight for measuring point illumination
• Convenient probe storage on the back

*When used properly per Article 110.4 Use of Equipment (A) Test Instruments and Equipment.

Specifications

Temperature

• Operating: -10°C to 55°C (14°F to 131°F)
• Storage:-30°C to 60°C (-22°F to 140°F)

Relative humidity

• 90%: 0°C to 30°C (32°F to 86°F)
• 75%: 30°C to 40°C (86°F to 104°F)
• 45%: 40°C to 50°C (104°F to 122°F)

Altitude Operating: 2,000 m (approx. 6,561.6 ft)

Storage: 10,000 m (approx. 32,808.4 ft)

Battery type/life: AAA (2); 40 hours

Shock, vibration: Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument

Safety: ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV

Compliance to NFPA 70E1

AC bandwidth: 45 Hz to 66 Hz

Maximum working voltage: 1000 V AC/DC

Maximum measurable voltage: 600 V AC/DC

Duty cycle

• Indefinitely for voltages up to 240 V
• For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off
• For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s

Voltage hazard LED: LEDs turn on at voltages > 30 V AC/DC ± 35%

LED voltage indication levels: 12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V

LEDs: LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%

LCD resolution: 0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V

GFCI test current: 100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA

Standard input test current: < 5 mA

Size (H x W x L): 1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )

Weight: 9.9 oz (0.28 kg)

1. When used properly per Article 110.9 Use of Equipment (A) Test Instruments and Equipment.
